Feed the Line: Replacement Blades and Tips

Job: Keep grout-maintenance and floor-scraping work moving by matching each consumable to a verified parent, planning working/spare/quarantine stock, and replacing worn interfaces before operators compensate with unsafe force

Time: Fifteen minutes for a one-tool check and change; several hours to audit, label, and establish a crew or crib system

Difficulty: Intermediate — the physical change may be simple, but two members are title-grade and one is an orphan whose parent is absent, so fitment discipline carries the job

Everything else: the actual parent tools and current manuals; original packaging and labels; model/serial records; verified mounting hardware; inspection light; change tools specified by the parent maker; cut-resistant handling selected through the task assessment; eye protection; lockout/isolation procedure where applicable; clean wraps and rigid sharps container as required; stock cards or digital issue log; quarantine tags

A replacement part is a promise of fit. In this line, accepted evidence is not strong enough to make that promise by appearance.

The operating rule is therefore:

parent identity first → accepted fitment second → physical inspection third → controlled change → witnessed return to work.

Width, color, hole spacing “looking right,” and shelf adjacency never outrank that chain.

Separate the three systems

| Consumable | Documented identity | Parent situation | Honest buyer |

This table is not a compatibility chart. It is a stop/go map showing where verification still has to occur.

Build a parent-first equipment register

For every active tool, record:

exact model key/model number from the tool;

serial or generation where relevant;

current manual revision;

installed consumable identity;

verified replacement source/document;

last inspection/change;

use condition and material;

Photograph the tool marking and the installed interface before removal. Keep the consumable card or label with the record.

If the parent marking is unreadable, do not solve identity by trial installation. Move the tool to quarantine until documentation or the manufacturer resolves it.

Grade every fitment claim

Use a simple evidence ladder:

Accepted official exact-model fitment: strongest; record the source and revision.

Third-party listing: research lead only.

The 19403, 19453, and 19502 live at different points on this ladder. Do not “complete” missing evidence by measuring a slot and assuming the material, hardness, mounting geometry, and load path match.

An installed part can sit flat and still be wrong.

Plan stock by interruption consequence

Do not invent a universal blades-per-room or tips-per-shift ratio. Consumption depends on:

grout or adhesive hardness;

joint/edge footage;

depth and contamination;

operator angle and force;

wet/dry condition;

whether the interface is reversible or serviceable;

material identity and task energy.

Instead, separate stock into:

working: installed and inspected;

ready spare: verified to the exact parent, sealed/clean, within easy reach;

reserve: verified stock protected from damage;

spent: removed, wrapped/contained, awaiting disposal;

quarantine: identity, fitment, condition, or history uncertain.

For a one-off repair, one verified spare may prevent a store run.

Define the replacement trigger by behavior

Calendar changes waste usable interfaces; failure-run changes damage work. Use observable triggers.

Hand grout-saw branch

Suspect a spent 19403 interface when the same grout and stroke produce:

lower removal rate;

skating instead of tracking;

poor debris clearance;

more frequent contact with tile arrises.

First clear and inspect. A loaded cutting surface can imitate wear. If behavior does not recover, replace under the verified parent instructions.

Scraper-blade branch

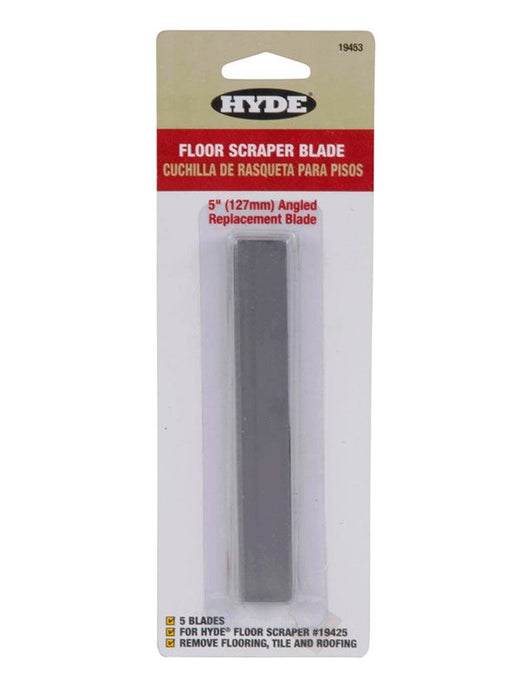

Suspect a spent or damaged 19453 when the verified parent:

rides over the bond line;

requires a steeper angle or extra force;

smears after cleaning;

leaves substrate gouges as the operator compensates;

shows a rolled, chipped, cracked, bent, or corroded interface.

The 19453 product record carries a disputed parent identity. Do not teach striking, reversal, sharpening, or cross-parent use from that dispute.

Regrout-tip branch

Suspect a worn 19502 interface when the verified parent manual’s performance checks fail or the tool no longer tracks/cuts as expected under unchanged material and technique.

Distinguish wear from a parent failure

A new consumable does not repair:

loose or damaged mounting hardware;

bent or cracked chassis;

worn bearings or drive components;

incorrect operating mode;

unsuitable work material;

a technique problem;

missing guards or dust controls.

When performance declines suddenly, inspect the complete system. Compare the removed and verified spare interfaces. If a new part immediately repeats the failure, stop changing ammunition and diagnose the tool/material.

Do not use stacked shims, altered holes, filed mounts, adhesive, or over-torqued hardware to make a near-fit part stay in place.

Set a safe change boundary

Before handling any interface:

move to a stable, well-lit change station;

clean enough debris to expose the mount;

protect eyes and hands from edges, grit, fragments, and pinch points;

prevent unexpected tool motion or energization;

secure the work zone from bystanders;

stage the specified hardware and change tools;

preserve orientation evidence.

OSHA’s hand-protection rule requires employers to select appropriate protection for hazards such as cuts, abrasions, punctures, and thermal/chemical exposure. Gloves do not authorize touching an edge or reaching into an energized mechanism.

For any powered parent, disconnect or isolate through its manual and applicable site procedure. OSHA’s hand and power tools guidance emphasizes guarding, maintenance, and operation according to manufacturer instructions. This guide does not invent the absent Regrout Tool’s isolation point.

Run a controlled removal

Before loosening anything:

Photograph orientation and hardware order.

Confirm the replacement label against the parent register.

Read the current change instruction.

Account for springs, clamps, washers, fasteners, and sharp edges.

Support the interface so it cannot fall or spin.

Remove with the specified tool.

Keep old/new parts physically separated.

Do not copy mounting instructions between the three families. A grout-saw blade, scraper blade, and regrout tip have different load paths even when all are “replacement parts.”

If hardware is missing, distorted, corroded, or previously improvised, stop. A fresh consumable on an unverified mount is not a completed change.

Inspect the removed interface as evidence

wear location and symmetry;

chips, cracks, bend, corrosion, glazing, or loading;

contact marks at the mount;

unusual heat/color;

material embedded in the working surface;

whether failure was gradual or sudden;

Asymmetric wear can point to misalignment or technique. Repeated fracture at the same location can point to mounting load. Heavy loading may call for cleaning/work-practice changes rather than faster replacement.

Do not claim the material composition of a 19403 or 19502 from color or spark. Their accepted records do not establish it.

Verify the replacement before installation

manufacturer and part/model identity;

parent model/generation;

required guard or cover;

A 5-inch width does not prove fit on another 5-inch scraper.

Any discrepancy goes to quarantine, not the mounting slot.

Clean the mount only through the parent instructions. Seat the replacement in the correct orientation, preserve the required guard, and tighten hardware by the specified method.

This guide supplies no torque, threadlocker, sharpening, reversal, preload, or clearance value because none is accepted for these members.

account for all tools and loose parts;

check movement by the manual’s unpowered method;

reinstall guards/covers;

remove isolation only when the area is clear;

update the tool record.

Do not discard the old interface until the new setup passes and identity is confirmed. Preserve it wrapped and labeled if failure analysis remains open.

Witness the return to work

Use a representative, non-critical starting area. Restore normal technique—do not prove the new part by pushing harder.

tracking and control;

cutting/scraping rate;

vibration and sound;

debris/dust control;

heat or movement;

Stop immediately for loosening, chatter, wandering, unexpected contact, or a different load. Re-isolate and inspect.

A successful first stroke proves only that the local installation operates. It does not expand fitment to another parent or brand.

Connect consumables to silica and legacy-material controls

The 19403 and 19502 are associated with cured grout removal. Evaluate silica exposure and housekeeping through the task plan; a fresh interface can reduce force and time, but it does not eliminate respirable dust. Use the construction silica standard where it applies.

The 19453’s scraper branch can encounter older resilient flooring or adhesive. EPA’s Asbestos in the Home guidance identifies older flooring and adhesives among materials that may contain asbestos. Stop and obtain qualified assessment before disturbing suspect material. No scraper blade is an asbestos-control method.

Do not let “fresh consumable” become permission to enter an unassessed material.

Issue and replenish without contaminating identity

Label storage by parent model + consumable model + source revision, not by “grout,” “scraper,” or “5-inch.”

Keep cards separated. Do not decant different tips into one bin. Preserve lot/package information when relevant.

name the parent;

scan/record the consumable;

record quantity issued locally;

capture reason for change;

return unused stock to its exact bin;

route unknown pieces to quarantine.

Reorder from observed consumption and minimum/maximum policy.

Audit the loop

verified consumable mappings;

open fitment flags;

issue/return records;

unlabeled loose parts.

Do not present it as a starting-from-zero purchase. Its page serves the existing owner who can verify the parent independently.

The 19453 deserves a separate identity hold: the product and line records disagree about its parent pattern.

Close the job record

Separate these statements:

verified locally for this exact parent;

still title-only or third-party.

What goes wrong (and the fix)

A 5-inch blade is installed because the width matches. Remove and quarantine it; verify the exact parent/part relationship.

A slowing grout saw gets more pressure. Clear, inspect, and renew the verified consumable before an arris is chipped.

A new interface repeats the old failure. Diagnose mount, parent, material, and technique.

The 19502 is sold to someone without its parent tool. Stop; the documented starting-from-zero route is the linked hand grout saw, not an orphan tip set.

A spent edge goes loose into trash. Wrap or place it in the approved sharps route.

A powered part is changed while connected. Re-establish isolation through the parent manual/site procedure.

A fresh consumable is used on suspect old flooring. Stop for asbestos assessment.

Local fit is written into customer copy as universal compatibility. Remove it; only accepted official evidence can close the graph claim.

The history footnote

Replaceable interfaces separate the durable chassis from the part deliberately consumed by work. That economic pattern crosses saws, scrapers, and powered tools without proving any shared mount.
