How to Edge a Concrete Slab

Job: use a hand edger at the interface between fresh concrete and a perimeter form to produce the edge treatment required by the project.

Time: there is no responsible clock-time estimate. The working window depends on the concrete mixture, placement, consolidation, slab geometry, ambient conditions, and the finish specification.

Difficulty: moderate. The stroke is learnable; coordinating it with the concrete’s changing condition and the rest of the finishing sequence is the skilled part.

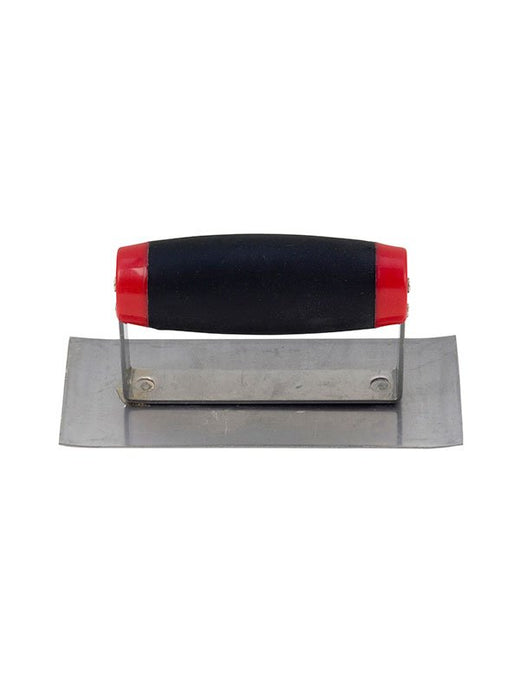

The tool from this catalog: Hyde 18040, 1/2" MAXXGRIP® Edger — the exact and only registered product for this job. Hyde identifies it as a 2-7/8" × 6" (73 mm × 152 mm) polished-steel edger with a soft-grip handle, sturdy steel mounting, and curved edges intended to prevent gouging.

Everything else: the approved concrete mixture and placement plan; secure forms built to the project detail; the specified strike-off, consolidation, floating, jointing, texturing, and curing equipment; access boards or other work-positioning provisions selected for the placement; cleaning water and a suitable nonmetallic cleaning tool; the concrete supplier’s current product data and safety data sheet; and the site safety plan. The Hyde 18040 is an edging tool. It does not select the mixture, establish elevations or drainage, consolidate the placement, create the project’s joints, choose the final texture, determine curing, or authorize form removal.

Before the pour: settle the decisions the edger cannot make

Read the edge detail and finish specification

Find the drawing, written specification, approved sample, or responsible person who defines the finished edge. Confirm which perimeters receive an edge treatment, where the treatment starts and stops, how corners and interruptions are handled, and how the edge meets the field finish and any joints. If the documents call for a named profile, dimension, tolerance, decorative detail, or special exposed-form condition, do not assume the 18040 produces it merely because “1/2"” appears in the product name.

This check also prevents a common category error: an edger works at an accessible perimeter beside a form or isolation material. It is not a groover, joint cutter, finishing trowel, float, or repair tool for hardened concrete. If the edge is inaccessible, the specified treatment calls for a different geometry, or the finish must be produced after form removal, stop and resolve the method before concrete arrives.

Identify who owns the placement decisions: on a small owner-performed slab, that may be the concrete supplier’s written guidance and the project specification; on contracted or engineered work, it is the approved submittal, specification, and responsible finisher or design professional. Record the mixture designation, required finish, joint plan, curing method, weather plan, and form-release instructions from those sources.

This guide deliberately supplies none of those project-specific rules. The National Ready Mixed Concrete Association’s current general guidance says mixture selection should be discussed with the concrete supplier, that placing and finishing require planning for mixture, method, and field conditions, and that excessive finishing should be avoided.

Inspect the form interface and the tool

Before placement, walk every run that will be edged.

Forms must be secure and aligned to the project detail. An edger follows the interface presented to it; it cannot correct a moving, bowed, damaged, or misplaced form.

Remove obstructions from the intended tool path. Stakes, braces, protruding fasteners, reinforcement, isolation material, and embedded items must not force an improvised stroke.

Confirm that the approved form treatment has been applied, if one is specified.

Examine the 18040’s working surface and edges. It should be clean, smooth, and free of hardened concrete or damage that could print into fresh material. Confirm that the handle and mounting are secure.

Hold the clean tool against a representative dry form or mock-up. Verify that there is room for the plate, handle, and operator’s hand and that the tool can travel through corners and terminations without colliding with braces.

Where appearance or tolerance matters, make an approved sample or mock-up using the actual mixture, form system, and finish sequence. A dry fit proves access, not the final profile.

Readiness and timing: earn the first pass

Let placement and consolidation establish the edge

The concrete must first be placed, struck off, consolidated, and initially leveled under the project’s method. NRMCA’s flatwork guidance specifically calls for careful consolidation at form edges before finishing. The edger cannot repair missing consolidation. If the perimeter contains visible voids, displaced aggregate, low areas, or a form that moved during placement, stop and have the responsible finisher correct the placement under the approved procedure. Do not hide a void with surface paste or invent a patch mix.

Keep the edging route observable during initial operations. The first edging pass should work the placed edge, not redesign it.

Use condition, not a stopwatch

NRMCA CIP 14 distinguishes early leveling operations from later finishing and directs finishers to wait until bleeding has finished and visible surface water has disappeared before subsequent finishing. That is a general sequencing boundary, not a fixed elapsed time. Mixture characteristics and field conditions change the interval, and the project specification may impose additional requirements.

Before bringing the edger onto the slab, confirm all of the following:

the responsible finisher has released the edge for this operation;

the project’s readiness criterion has been met;

no bleed-water sheen or standing water is being worked into the surface;

the edge can accept the tool without slumping, tearing, or carrying coarse material along the stroke; and

the field-finishing crew knows the edging pass is beginning, so the two operations do not erase each other.

Do not sprinkle water or dry cement onto the surface to make the tool move. NRMCA expressly warns against both practices during finishing.

The first pass: establish a controlled run

Start with a short trial section

Choose an inconspicuous straight run where you can see both the form interface and the surface behind the tool. Set the 18040 into its working position without forcing it. The form is a reference, not a pry point: keep the tool aligned to the intended path, maintain stable contact, and use only enough pressure to keep the working surface engaged.

Move through a short section with a smooth stroke. Hyde’s verified product claim is that the tool’s curved edges prevent gouging; that is not permission to drive an edge into the concrete. Watch the material immediately behind the tool. A usable trial leaves an edge that matches the approved appearance, remains supported, and does not show tearing, coarse-aggregate displacement, deep tracks, or material piled ahead of the tool.

If the trial fails, stop. Determine whether the concrete is not ready, the edge was not consolidated, the form moved, the path is obstructed, the tool is dirty or damaged, or the 18040 does not match the specified edge detail. Repeated passes over a failing trial are not diagnosis.

Run the first continuous pass

Once the trial is accepted, continue in manageable lengths.

Establish a balanced work position that keeps weight off unsupported fresh concrete and follows the site access plan.

Place the tool at the beginning of the run with the same orientation accepted in the trial.

Move steadily along the form interface. Keep the handle quiet; abrupt wrist changes produce abrupt changes at the edge.

Overlap the next stroke enough to blend with the accepted end of the previous one, judging the overlap by the surface result rather than an invented measurement.

Lift and reset at corners, braces, embedded items, and interruptions instead of twisting the tool through an obstruction.

Inspect the completed length immediately while correction is still possible.

Maintain one consistent method around the slab. Alternating operators, grips, travel directions, or pressure without an approved sample invites visible variation. If another person takes over, have that person reproduce the accepted trial before continuing.

Handle corners, terminations, and changes deliberately

Stop a straight stroke before a corner or termination. Reposition, confirm access, and work the adjoining run as its own controlled section. At isolation material, embedded hardware, drains, steps, ramps, or transitions, follow the drawing and approved sample. If the plate cannot reach without displacing the item or changing the required detail, the 18040 is not the solution for that location.

Clean material from the tool as needed before it hardens. A buildup on the working surface changes how the tool travels and can transfer ridges to the next run. Use the cleaning method permitted by the concrete product’s instructions and the site plan.

Integrate edging with the rest of the finish

Coordinate subsequent passes with field finishing

Edging and field finishing meet along the same narrow band. After the first accepted edge pass, the field crew continues the specified floating, troweling, texturing, or other finish. That work may disturb the shoulder beside the perimeter; the edge may therefore require another pass. The decision is visual and specification-driven: return when the field operation has altered the accepted edge and when the concrete is still in the approved working condition.

On every return:

inspect before touching the surface;

repeat the approved orientation and stroke;

use the least work needed to restore the accepted edge;

blend the perimeter into the specified field texture without polishing a separate border unless the finish schedule calls for it; and

stop when the edge matches the sample or project requirement.

Do not prescribe a fixed number of passes. Do not assume every troweling, floating, or texturing operation requires re-edging.

Protect the joint and texture plan

The edger does not lay out or form control, contraction, construction, or isolation joints. It also does not choose whether the slab receives a smooth, broomed, exposed, decorative, or other finish. Coordinate the perimeter pass so it does not erase a required joint termination or leave a border inconsistent with the finish specification.

If the crew cannot explain where joints terminate, how texture meets the edge, or who owns the curing handoff, pause the perimeter work and resolve those items. A visually neat edge does not approve an incomplete slab system, and this guide makes no code, structural, durability, drainage, slip-resistance, or service-life claim.

Inspection and handoff

Inspect while the edge remains correctable

View each run from directly above, along the form, and in low raking light where available. Compare it with the approved sample or specification, not with an assumed “standard” profile.

a continuous edge treatment along every designated run;

consistent appearance and transition into the field finish;

clean starts, stops, corners, and interruptions;

no gouges, torn surface, dragged aggregate, ridges, doubled tracks, or pasted-over voids;

no evidence that the form or isolation material moved;

required joints and embedded items remaining legible and undisturbed; and

no fresh-concrete residue left to harden on the tool.

Record unresolved deviations before curing or protection makes them difficult to assess.

When the responsible finisher accepts the edge, turn the slab over to the project’s specified curing and protection procedure. Protect the finished perimeter from contact during the handoff, but let the project documents define how.

What goes wrong — and the bounded recovery

The tool tears the edge or carries coarse material. Stop the pass. Treat readiness, consolidation, mixture behavior, or an obstructed path as possible causes. Have the responsible finisher assess the concrete and restore the area under the approved method; do not keep cutting deeper or add surface water.

The tool leaves gouges or repeated tracks. Clean and inspect the 18040, confirm the form path, return to the accepted orientation, and reduce unnecessary handle movement. If the verified tool condition and method do not solve it, stop and reassess tool-to-detail fit.

Material piles ahead of the tool. Do not push the pile around the perimeter. Stop, clean the tool, and have the finisher decide whether material condition or the placement at the form is the cause.

The edge contains a void or honeycombed area. Edging is not consolidation or repair. A cosmetic skim over a void is not an accepted recovery.

The form moves or the edge line wanders. Stop. Do not use the edger to lever the form back. Secure and assess the form under the placement plan, then determine whether the affected concrete can be corrected.

The edge no longer matches after field finishing. If the concrete remains within the approved working condition, make the minimum repeat pass needed to restore the accepted appearance. If it does not, stop; do not force the steel or invent a late rework method.

The finished treatment is the wrong profile or dimension. The product name was mistaken for a project detail, or the tool was not verified against the sample. Stop before repeating the condition elsewhere.

The edger seems to bind to the form. Confirm the path is free, the form is stable, and the specified form treatment was followed. Do not add an improvised lubricant or release agent to fresh concrete.

Cleanup, inspection, and storage

Clean the 18040 before concrete hardens on it, following the concrete product’s safety data sheet and the site’s washout rules. Do not discharge cementitious wash water to soil, landscaping, drains, or surface water unless the site plan expressly permits it. Use a non-damaging cleaning method; do not grind the working surface or alter the product’s unpublished geometry.

After cleaning, inspect the handle, mounting, plate, and working edges. Dry the tool and store it where the polished-steel surface will not sit wet, contact corrosive material, or be damaged by other tools. Before the next placement, repeat the clean-and-secure inspection.

Safety boundary and current sources

Fresh concrete is a chemical-contact hazard. OSHA states that wet cement can cause caustic burns and dermatitis and directs employers to control skin and eye contact through hazard assessment, work practices, training, washing provisions, and appropriate protective equipment. If wet concrete contacts skin or enters clothing or footwear, follow the SDS and site emergency procedure immediately rather than waiting for pain.

This hand-edging guide does not cover dry cutting, grinding, chipping, or hardened-concrete repair. Those operations introduce different silica, guarding, noise, debris, and respiratory-protection requirements and require their own task plan.

Current primary sources used here:

Hyde Tools — 1/2" MAXXGRIP® Edger, SKU 18040

NRMCA CIP 14 — Finishing Concrete Flatwork

OSHA — Concrete and Concrete Products: Controlling Hazards

OSHA — Preventing Skin Problems from Working with Portland Cement

Product fit, history, and FAQs

Its verified product facts stop at identity, overall plate dimensions, polished-steel description, soft-grip handle, sturdy steel mounting, and the curved-edge anti-gouging claim. No second Hyde model is introduced as a product edge here.

History: no source in the accepted 18040 record establishes an inventor, launch date, patent, or Hyde-specific history for this edger.

What does “1/2"” mean? Hyde’s accepted sources do not say.

When should I start edging? After the project’s readiness criterion is met and the responsible finisher releases the edge. NRMCA’s general sequence waits for bleeding to finish and visible surface water to disappear before subsequent finishing; no fixed minutes apply.

How many passes should I make? As many as the approved finish sequence legitimately requires, and no more. Inspect after field-finishing operations and stop when the edge matches the project requirement.

Can the edger fix poor consolidation at the form? No.

Can it make control joints? No. Joint layout and execution require the project’s joint plan and the proper jointing method.

Can I use it on hardened concrete? This guide authorizes no hardened-concrete use. Grinding, patching, and resurfacing are separate jobs with separate tools and hazards.

Does it make the slab structural, code-compliant, chip-resistant, or freeze-thaw durable? No such performance or approval claim is accepted for the 18040. Those outcomes depend on project design, mixture, placement, consolidation, finishing, joints, curing, exposure, and inspection.

What form-release product, cure, or weather limit should I use? Use only the project documents and the concrete supplier’s current instructions.

What does “MAXXGRIP PRO®” mean in some store records? No accepted Hyde source defines a PRO tier for 18040.

No radius, depth, or profile claim is made.

Those claims are not repeated here and require independent source repair.

The operator’s frozen constraint controls this guide; those assertions remain unresolved rather than being promoted.
