How to Cut Thick Bun Foam

Those two six-inch hollow-ground square-point knives are the complete Hyde backlink union for this job. The nearby four-inch hollow-ground knives, flat-ground six-inch knife, eight-inch square points, electric carving knives, saws, slitters, supports, workholding, sharpening media, guards, and PPE are not added to that union.

“Thick bun,” the material branches, the bench method, and the failure controls below are authored trade knowledge bounded by those facts.

No invented thickness or capacity: the blade dimensions describe the knife, not the stock it can sever. The line document’s approximate thickness language and the product guides’ “one committed draw” wording are not converted into a capacity claim here. The actual conditioned material must pass a same-stock trial with the actual knife, support, restraint, stroke, and acceptance criteria. If the job requires blind force, uncontrolled reach, a hand in the cut path, or a meeting cut that cannot be indexed safely, leave the hand-knife process.

Job: qualify an identified foam bun for hand cutting; lay out and support the complete section; restrain it without changing its recovered shape; use a sharp hollow-ground square-point knife in long, controlled, wall-following slicing strokes; inspect the recovered cut; then clean, guard, and store the knife.

Result: the keep piece recovers to the specified dimensions and geometry; the cut face meets the job’s limits for squareness, smoothness, tearing, glazing, compression damage, and contamination; laminates or inserts remain intact where required; the support is not struck; and knife, handle, work area, offcut, and every person finish under control.

Time: no universal rate is honest. Foam chemistry, cell structure, density, firmness, temperature, recovery state, laminate construction, cut geometry, blade condition, table access, and inspection own the cycle. A rate that rewards harder pulling, skipped recovery, blind reach, or a dull edge is a defective production target.

Difficulty: the edge can pass through ordinary foam easily; holding a thick, compliant bun in its true geometry while a long unguarded blade travels through it is the skilled part. The job becomes high-consequence when a deep cut hides the edge, the foam closes on the blade, a helper holds the waste, a hard support lies beneath the cut, or the operator reaches across a wide table.

Use only where the controlled shop standard, purchase record, or qualified trial names BG145. No separate thickness, firmness, speed, durability, or finish capability is established. |

It has no documented performance advantage or different geometry. Use where the qualified process names BG352, not because a guessed works-code meaning implies a different grind. |

Everything else the honest job requires: the foam manufacturer’s current identification, fabrication instructions, Technical Data Sheet and Safety Data Sheet where supplied · the drawing, pattern, or approved cut list · a representative same-lot offcut · a stable, correctly placed cutting table · a clean broad support or qualified sacrificial cutting surface · broad stops, fences, or restraints that do not distort the bun · compatible marking tools · a square or pattern used for layout, not left where the edge can strike it · adequate light · an approved knife guard or protected storage station · first-aid readiness · the employer’s hazard assessment and selected hand, eye, body, foot, and respiratory protection, if any.

Admit the material—or route it to another process

Identify the bun beyond the word “foam”

Record the maker, product or grade, lot, nominal construction, conditioning state, intended component, and downstream operation. Flexible polyurethane upholstery foam, viscoelastic foam, latex foam, closed-cell polyethylene or EVA stock, bonded/rebond foam, reticulated foam, and laminated composites can all look like “bun foam” at a distance and behave differently at an edge. Some relax as soon as the blade leaves; some grip the cheeks; some stretch; some crumble; some carry adhesive layers, scrim, fiber, film, gel, skin, or embedded components.

Hyde’s phrase is deliberately broad—“dense materials like foam.” It does not name a polymer, density band, firmness band, temperature, flame-retardant package, cell structure, or finished construction. Do not turn feel, color, cell size, or rebound speed into an identification. Use the material record.

Confirm that a hand knife is an approved fabrication method

The Polyurethane Foam Association describes foam fabrication as ranging from simple cutting to precise shaping, laminating, and composite construction, and identifies vertical band saws and horizontal slitters as basic production machinery. A hand knife is therefore one possible process, not the default answer for every bun. Follow the material maker, component drawing, customer specification, and site process. Route the job away from this guide when it calls for a band saw, slitter, contour cutter, hot wire, oscillating knife, die, CNC process, guarded powered knife, thermal seal, or another specified method.

Condition the stock before measuring or cutting

Let compressed, rolled, cold, hot, recently unpacked, or recently laminated stock recover exactly as its maker or shop specification requires. Support it in the orientation used for inspection. Do not invent an acclimation time, temperature, humidity, compression percentage, or rebound interval. Marking and cutting a bun while it is still recovering can produce a dimensionally perfect compressed piece that becomes wrong after release.

If no conditioning instruction exists, the production owner must establish and document one by material and process qualification before release. A one-off cut can be inspected after stable recovery; it cannot create a universal recovery rule.

Expose the construction and reject hidden hazards

Inspect all accessible faces and the cut record. Determine whether the path contains:

one homogeneous foam or a lamination of different foams;

bonded crumb, fiber, textile scrim, film, pressure-sensitive adhesive, skin, or facing;

gel, encapsulated material, reinforcement, clips, staples, wire, springs, fasteners, or a molded insert;

previous repair, contamination, overspray, abrasive grit, or hard inclusions;

scorching, chemical attack, embrittlement, friable material, or an unknown residue.

This square-point knife is not a probe for finding hidden metal. Unknown recovered upholstery, mattresses, seat assemblies, and plant scrap are not admitted as clean bun merely because foam is visible. Open or image the construction through an approved process, obtain the build record, or reject the hand cut.

Define the finish before the first stroke

Write the job’s actual acceptance criteria: recovered length and width, squareness or bevel, surface smoothness, allowable witness line, torn-cell limit, laminate alignment, edge contamination, and whether a following bond, sew, cover, or assembly step will hide or magnify the cut. “Cut through” is not a finish criterion.

Admit the material only when its identity and condition are known, a hand knife is permitted, the actual cut path is free of unqualified inclusions, the bun can be supported and restrained without a hand in the blade path, and a representative trial can prove the cut.

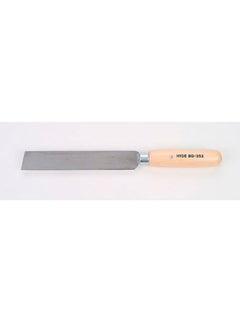

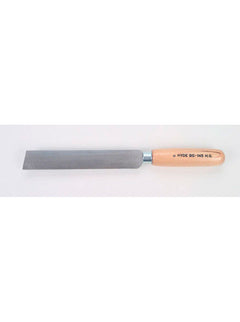

Select between 60720 and 60750 without inventing a difference

both are hollow-ground square-point knives;

both list a 6" × 1" × .065" blade;

both carry the same Hyde claim for dense material such as foam;

the record does not decode BG145 versus BG352.

Selection is therefore a controlled-identity decision. Continue the exact pattern already named by a validated station card, approved sample, customer process, purchase record, or qualified trial. If a plant holds both without a process distinction, do not author one locally. Keep them segregated by model, run the same inspection standard, and ask Hyde Industrial Blade Solutions for the BG-spec difference before claiming interchangeability or assigning separate work.

Blade length is useful for identifying the product and planning a trial; it is not permission to cut stock of a corresponding thickness. The cutting envelope also depends on starting access, stroke angle, how much of the edge remains controllable, handle clearance, support, cut closure, material recovery, and whether a reverse-side meeting cut can be indexed.

Leave the exact union when the approved process needs a different reach, guard, machine, geometry, or cut mechanism.

Build the station around full support, neutral geometry, and a clear release path

Support the whole bun

Use a stable table or platform large enough that the keep piece and waste remain supported before, during, and after separation. Do not let the waste hang over an edge to “open” the cut; its increasing weight can pull the line, rotate the bun, pinch the blade, and drop suddenly at release. Add a coplanar support or shorten the staged workpiece through an approved rough-cut process.

The surface under the cut must be clean and qualified. Remove staples, screws, grit, hardened adhesive, chips, and metal straightedges from the complete hidden edge path. Use a sacrificial surface that the process permits the blade to approach without edge damage or product contamination. A square point reduces accidental diving compared with a sharp piercing tip, but it does not make a hard table strike safe.

Set the work at a height and distance that allow an upright torso, elbows near the body, a neutral wrist, and a long draw ending before the shoulder or balance limit. Feed or reposition the bun; do not reach across a wide table with a live blade. NIOSH’s non-powered hand-tool guidance favors less force, less repetition, and less awkward posture, and OSHA’s cutting ergonomics guidance likewise treats bent wrists, long reaches, dull edges, and repeated force as controllable hazards.

Mark more than one face

Establish datum, keep side, waste side, orientation, and any grain, skin, laminate, or assembly direction the specification controls. Mark the line on the entry face and at least one adjacent face so the operator can see whether the blade wall remains square. For a cut that must be matched from another face, carry indexed witness marks around the bun from one datum rather than measuring two unrelated lines.

Use only a marker, chalk, template, or layout chemistry compatible with the foam and downstream bond or cover. Keep hard squares and templates out of the stroke after layout unless the exact method qualifies them as a guarded guide with positive blade clearance. A hidden collision can chip an edge or kick the knife sideways.

Restrain without preloading the answer

Foam is compliant; narrow clamps can make a temporary dent, bow the cut face, change recovered dimensions, or create a curved line that looks straight only while compressed. Use broad-area stops, a fixture, platen, or restraint established for the material. The purpose is to prevent gross translation and rotation, not to crush the bun into submission.

Treat compression as a qualified process variable:

apply it broadly and evenly;

keep every hand and fixture part outside the complete blade and release envelope;

prove that the recovered sample meets dimension and surface criteria;

reproduce it through the controlled fixture, not operator feel.

If uncompressed support gives a clean, controlled trial, do not add compression by habit. If compression is required but cannot be applied without a helper’s hands near the line, the setup fails.

Control both sides and the end of the stroke

Plan the entry, the wall the blade will follow, the stopping point, withdrawal, waste behavior, and what happens when resistance disappears. The cutting hand must finish in open space beside the body, not at the abdomen, thigh, off hand, clamp, table edge, or another worker. A helper may manage a remote support only under a defined two-person procedure and outside the full blade, pinch, and falling-offcut zones; a helper never grips near the cut to keep it open.

Keep the floor dry and clear. Large foam offcuts can obscure the knife, shift underfoot, or spring into the station. Stage a landing place before separation.

Inspect the knife and qualify the exact stock

Knife inspection

Under good light, identify 60720/BG145 or 60750/BG352 and inspect:

the entire cutting edge for reflected dull spots, rolls, chips, nicks, corrosion, adhesive, and impact marks;

the square point and spine for bend, twist, crack, or evidence of prying;

both relieved faces for residue, asymmetric damage, or a prior regrind that appears to have altered the hollow;

the blade-to-handle joint for movement, gaps, corrosion, or contamination;

the handle for split wood, splinters, softness, oil, residue, or loss of secure grip;

the guard or protected storage arrangement for cleanliness and fit.

Quarantine a loose, cracked, bent, chipped, deeply corroded, contaminated, or altered knife. OSHA 1910.242 makes the employer responsible for the safe condition of hand tools.

Same-stock trial

Use an offcut from the actual lot and conditioning state, including the real lamination or facing:

Mark a short representative line and the same datum/witness faces used in production.

Use the production table, support, restraint, orientation, knife model, PPE, and intended stroke.

Make a controlled slicing pass from an accessible face.

If the stock is not severed, continue only through qualified, visible, wall-following passes; do not increase force to force a single stroke.

Let the sample recover under its specified method.

Inspect recovered dimensions, squareness, cut-face smoothness, tears, crushed cells, laminate behavior, contamination, and support contact.

Inspect the edge, hollow faces, handle, and retention again.

Record material identity, condition, model, setup, result, and disposition.

A pass releases only that configuration and acceptance plan. It does not establish a public maximum thickness, density, capacity, production speed, or cross-material promise.

Make the long, wall-following cut

Start from an accessible face

Present the square point at the marked entry face with the edge aligned to the cut plane. Do not stab the middle of a bun or use the square end as a punch. If the shape requires an internal opening, route it to an approved opening and cutting process.

Take a full secure grip with the wrist near neutral. Keep the non-cutting hand behind the established cut plane and outside the possible exit, withdrawal, and release paths. A glove does not make the off hand into a workholding device.

Slice; do not press

Use a long, smooth draw so the edge shears progressively.

“Long” means using the available cutting edge and arm travel smoothly within balance. It does not mean reaching to the shoulder limit, burying the handle, yanking when the foam closes, or forcing the entire job into one pass. Keep the handle moving along the intended plane and watch the entry line plus the adjacent witness line.

Follow one established wall

When the first pass does not sever the stock, withdraw along the cut with the knife controlled, allow the foam to relax enough to reveal the established wall, and re-enter that wall from the accessible face. Use repeated long strokes in the same plane. Do not saw rapidly with short strokes, carve a new channel beside the first, lever the cheeks to open the kerf, or twist the blade inside the bun.

If the foam repeatedly closes on the knife, correct support, restraint, material state, edge condition, and process selection. Do not put fingers, wedges, screwdrivers, or a helper’s hand into the cut beside the live edge. An approved remote fixture may control opening only if the same-stock trial proved it without distortion.

Match from another face only under an indexed method

If the qualified process requires turning the bun, remove and guard the knife first. Keep the bun supported, turn it without losing datum, and align to continuous witness marks carried from the original setup. The second cut must enter the existing plane; two independent measurements create a step.

Stop if the operator cannot locate the established wall without probing blindly. A reverse-side meeting cut is a controlled method, not a workaround for an unproved capacity.

Control release

As the final ligament narrows, reduce force and shorten the stroke within control. The last fibers or cells can part suddenly. Keep the waste supported and the finish path clear. Do not catch a falling offcut with the knife hand or reach across the edge with the other hand. Place or guard the knife before moving the separated pieces.

Stop conditions

Stop immediately when:

the knife, handle, or blade-to-handle joint moves;

the edge encounters a hard inclusion, metal, spring, staple, wire, abrasive grit, or unknown insert;

pull force rises sharply or changes from the qualified trial;

the foam closes hard enough to trap the blade;

the blade twists, bows, chatters, or leaves the marked plane;

the cut face tears, crumbles, glazes, smears, stretches, or delaminates beyond the criterion;

the bun shifts, rolls, overhangs, or changes shape under restraint;

the waste or helper enters the release path;

the blade approaches a hard support, clamp, guide, or hidden table feature;

fatigue changes grip, wrist position, balance, or stroke;

the process no longer matches the released same-stock trial.

Withdraw along the established wall if that can be done under control, guard the knife, stabilize the work, and diagnose. More force is not diagnosis.

Inspect the recovered work and close the station

Let the keep piece recover according to the material specification before final measurement. Inspect from the controlled datum:

recovered dimensions and angle;

squareness across adjacent witness faces;

a continuous cut wall without steps from meeting passes;

smoothness appropriate to the next bond, cover, sew, or assembly step;

no torn trench, compressed lip, glazed or smeared face, dragged adhesive, separated laminate, or exposed unintended insert;

no blade strike or contamination on the support;

a stable, controlled offcut.

Do not “correct” a dimensional miss by freehand shaving while holding the piece. Re-support, re-mark from datum, and qualify the corrective cut, or reject the piece under the job plan.

Brush or wipe foam residue from the blade through the approved dry or material-compatible method, working away from the edge. Do not use compressed air as a casual cleanup method; OSHA restricts its use and requires guarding and PPE where it is permitted. Do not introduce oil, silicone, solvent, powder, or cleaner that can migrate into a later adhesive, coating, cover, or foam chemistry.

Dry the fixed blade completely, inspect edge and joint again, guard it, and store it where a blind hand cannot reach the edge. Segregate any rejected knife. Account for offcuts and fragments under the site’s housekeeping, reuse, and waste rules. Record the knife model, material, lot, setup, cut result, edge condition, and release or rejection.

PPE and ergonomics—the knife does not choose these for you

OSHA 1910.132 requires a workplace hazard assessment and selection of properly fitting PPE for the hazards found. For a hand-knife foam station, assess at least the long exposed edge, the non-cutting hand and forearm, possible flying fragments from a damaged edge or hard inclusion, falling or springing stock, material additives or contamination, cleanup chemistry, and the force, repetition, reach, and posture of the task.

Hand and arm protection: OSHA 1910.138 requires task-appropriate hand protection where severe cut or laceration hazards exist and requires selection by performance, task, conditions, and duration. The site may select a close-fitting cut-resistant glove and sleeve for the non-cutting side or both hands, but must account for grip and dexterity. No glove is cut-proof, and OSHA notes that glove choice is task-specific. A glove never substitutes for remote workholding or keeping the hand out of the plane.

Eye protection: use the protection selected by the assessment. OSHA 1910.133 requires appropriate eye or face protection where flying particles or objects are hazards and side protection where flying objects are possible. A clean manual foam slice may make little debris; a chipped edge, hard inclusion, brittle facing, or cleanup operation changes the assessment.

Body and foot protection: an apron, cut-resistant garment, safety footwear, or other protection belongs only where the assessment selects it for the blade finish path, dropped tooling, stock handling, or site hazards. Arrange the cut path first; PPE is the residual control.

Respiratory and chemical protection: manual slicing does not create a universal respirator requirement, and finished flexible polyurethane foam is not the same exposure as its reactive manufacturing ingredients. Follow the exact foam/facing/adhesive SDS, contamination assessment, and any dust-producing cleanup or secondary process. If respiratory protection is required, it belongs under the employer’s respiratory-protection program, not an improvised mask recommendation.

Ergonomics: sharpen and maintain the edge through an authorized method; raise, lower, or reposition the work so the wrist stays neutral and the elbow remains near the body; avoid long reaches; pause when grip or line control changes; rotate or mechanize repetitive work where the process assessment requires it. A dull blade converts a slicing job into a high-force job.

Train the operator on the exact station, material, knife, guard, PPE limits, stop conditions, and first-aid/reporting procedure. Do not hand a long fixed blade to an untrained helper because the foam “looks easy.”

What goes wrong—and the fix

“The foam closes on the blade.” The stock is preloaded, waste is pulling, the support lets the bun sag, the edge is dull, or the material/process is mismatched. Stop, withdraw in the existing wall, guard the knife, and correct support and qualification. Do not twist, wedge by hand, or pull harder.

“The face is ragged or chewed.” A downward press, short sawing strokes, dull edge, unsupported bun, or wrong material method is crushing before shearing. Restore the long slicing stroke under the approved edge-maintenance process and rerun the same-stock trial.

“The cut bows even though the line is straight.” Narrow clamps or hand pressure distorted the bun; a hanging waste pulled the plane; or the wrist wandered under reach. Return the bun to neutral support, use broad restraint, support both sides, and work within balanced reach.

“The cut has a step where the two sides met.” The bun was indexed from two measurements, moved during turning, or the second pass missed the established wall. Carry witness lines from one datum and prove the meeting method on scrap. Do not freehand sand or carve away a step unless the component process authorizes it.

“The blade stalls deeper in the cut.” Residue, a closing kerf, dullness, a laminate, a denser layer, or a hidden inclusion changed resistance. Stop and identify the cause. The hollow grind reduces cheek contact; it does not guarantee passage through every construction.

“The surface looks melted or smeared.” Excess friction, contamination, adhesive transfer, or an incompatible process is present. Do not add a lubricant. Confirm material chemistry, edge condition, stroke, and cleanup compatibility.

“The cut is short after the piece recovers.” The bun was measured or restrained while compressed, had not completed material-specified recovery, or stretched during the cut.

“The knife hit the table or a guide.” Quarantine it. Inspect edge, point, blade, joint, and support under good light; a hidden chip is a cut and flying-fragment hazard. Redesign the support path before resuming.

“A laminate separates.” The cut method, blade condition, stroke direction, or material conditioning is wrong for the composite. Stop and follow the laminate maker’s process. A clean foam core cut does not release a bonded assembly.

“The operator needs both hands to pull.” The force exceeds the qualified one-hand station, the edge is dull, the material is gripping, or the process is wrong. Do not put two hands on a handle not documented here for that use; requalify or route to another process.

“BG145 cuts differently from BG352 today.” Condition, sharpening history, contamination, handle condition, material state, or an actual undocumented BG difference may explain it. Quarantine the comparison, record both exact identities and conditions, and ask Hyde for the BG specification. Do not convert one observation into catalog doctrine.

“The edge is sharp, but production fatigue keeps rising.” Table access, repetition, stroke length, work height, restraint, material state, or process choice is wrong. Use the ergonomic assessment; a sharp hand knife is not proof that hand cutting is the correct production method.

Buyer and crew decisions

60720 or 60750? The evidence does not support a performance choice. Continue the exact validated pattern or obtain Hyde’s BG-spec distinction. Do not claim one is for softer, firmer, thicker, finer, longer, or higher-volume foam.

Is the stock known? If the grade, condition, lamination, inserts, and approved cutting method are not known, neither knife is released.

Can the entire bun be supported? If not, solve the support and material-handling problem before buying a longer pull stroke.

Can restraint stay broad and hands stay remote? If not, use a fixture or another process. Cut-resistant gloves do not cure hand workholding.

Establish qualified maintenance before edge condition becomes a production variable.

Can a same-stock coupon be kept with the process? If no, every material or lot change becomes an unproved cut. Retain the approved sample and the recorded result where the quality system permits it.

Is the work repetitive, wide, contoured, or tolerance-critical? Evaluate guarded production machinery or outsourced fabrication. The PFA’s fabrication overview places bandsaws and slitters at the center of foam production for a reason; a hand knife remains appropriate only where the qualified job fits it.

The history footnote—the old square point met the cellular-material problem

The square-point knife predates foam and Hyde. It is an anonymous shoemaker’s and leatherworker’s trade pattern: a long straight cutting edge ending in a blunt square nose so the worker can draw through flexible material without spearing the layer below. Army saddler’s inventory, and surviving museum examples. No defensible named inventor or invention date is established for the pattern.

Isaac P. Hyde’s documented method was to learn the factory’s cutting problem, sketch the required knife, forge it, and return with the tool. The square point then followed flexible-sheet work from footwear and saddlery into rubber, textiles, upholstery, and mill service.

Cellular polymer foam created a new version of an old friction problem. The cut can close around the buried faces of a flat blade, so the edge may still be keen while cheek contact drags the knife. Hollow grinding—a cutlery method that relieves the faces behind the edge—adapts the square-point pattern to that material behavior. Hyde’s current catalog says only what matters: the hollow grind works for dense materials such as foam.

The honest history stops there.

Obtain the BG specification from Hyde IBS before asserting any performance, geometry, fit, history, or interchangeability difference.

The line queue’s “4+” and line document’s approximate “beyond ~4"” language are authored planning shorthand, not Hyde capacity. This guide intentionally does not repeat them as a buying or operating limit.

Blade length is a documented product dimension, not a stock-thickness rating. No blade-to-stock ratio, handle-clearance rule, or reverse-side meeting-cut capacity is authorized.

No exact guard, sheath, carrying method, replacement blade, replacement handle, field joint repair, or allowable blade-to-handle movement is established for either knife.

The actual foam chemistry and construction must be identified. “Dense materials like foam” does not authorize a universal polyurethane, latex, viscoelastic, closed-cell, bonded, laminated, gel-filled, reinforced, or recovered-stock claim.

Slight compression and repeated wall-following passes are authored trade technique.

The held sources name no inventor or first date for the square-point pattern, hollow-ground foam knife, BG145, or BG352. Hyde founding remains “early-to-mid 1870s” because its own 1870/1875 records conflict.

Finished flexible polyurethane foam and reactive foam-manufacturing ingredients are different exposure contexts.
