How to Cut Hip and Ridge Cap Shingles

Job: prepare the correct hip-and-ridge cap pieces for one identified asphalt-shingle roof, but only when that roof-system manufacturer expressly permits field fabrication from the exact named shingle.

Scope: material and document verification · hip/ridge measurement and count planning · safe ground or protected-station staging · exact Hyde knife selection · paired back-side cap cuts · bundle and run sequencing · defect stops · installation handoff. Field-shingle courses, closed valleys, starter strips, tear-off, underlayment, ventilation design, and cap installation are separate work.

Time: plan by the number of continuous hip and ridge runs, the manufacturer’s documented cap yield, and the number of pieces calculated from its stated exposure. Cut one source shingle at a time unless an exact workplace method for the selected material authorizes a stack; this guide establishes no universal stack size or production rate.

Everything else: current exact-system instructions and wrapper · permitted source shingles · ridge-vent instructions where applicable · verified run measurements · the manufacturer’s fabrication diagram · measuring and marking tools · stable cutting station with sacrificial support · labeled containers · the employer’s PPE and roof-access plan.

Qualify the roof system before counting one cap

Identify the exact field shingle and the intended cap source. Record manufacturer, product line, size system, color/blend, region, production or lot identifiers available on the wrapper, and whether the ridge is solid or vented. “Architectural,” “three-tab,” “metric,” and “hip-and-ridge” are categories, not permissions. A matching color is not proof that the product may cap this roof.

Retrieve the current exact instructions from the manufacturer. Do not plan from a photograph, another brand’s wrapper, an old crew rule, or the dimensions of a removed cap. The controlling document must answer one of three ways:

Dedicated cap required or specified: use that cap product.

Field fabrication expressly allowed from a named shingle: use only that named source and its exact diagram.

Owens Corning’s current Supreme® installation instructions are an exact example of the second branch: they tell the installer to cut full Supreme shingles into three 12 by 12 inch hip-and-ridge shingles, use 5 inches of exposure, and locate one fastener on each side 5 5/8 inches from the exposed end and 1 inch up from the edge. Those are two product systems, not a blended industry recipe.

Freeze a cap control sheet. Copy the exact source, size track, permitted pattern, yield, dimensions, taper or separation detail, exposure, starting/ending treatment, hip/ridge order, fastening and sealing rules, weather provision, vent compatibility, and warranty/component condition. Record the document revision or retrieval date and retain the wrapper. Never fill a blank from another brand.

Resolve the dedicated-cap and warranty choice. GAF recommends a GAF Ridge Cap product even while its 3-Tab instructions permit field-made caps; Owens Corning’s warranty comparison makes component requirements roof- and warranty-tier-specific. Permission to cut one named shingle is not a universal warranty promise.

Keep ventilation inside the system boundary. A ridge vent changes support, fastener length, airflow, and cap compatibility. The cap, vent, roof design, and code must agree. Do not alter a vent slot from this page, and do not infer a universal vent ratio or slot dimension.

Establish safe access and a protected production station

A ground-level or properly protected platform station removes repeated blade work, loose caps, measurement tools, and offcuts from a slope. If a roof-level station is unavoidable, a competent person must approve its access, fall protection, support, material restraint, and exclusion zone before materials arrive.

Treat roof access separately. 29 CFR 1926.501(b)(13) generally requires fall protection for covered residential-construction workers at unprotected sides or edges 6 feet or more above a lower level. The employer selects the actual access and protection system.

Stage against sliding and dropped objects. Keep source bundles, finished caps, offcuts, and the pouched knife in separate controlled locations. Restrain material and exclude people below; never trust friction on shingles as the only restraint.

Build a cut station that supports the whole stroke. Use a rigid, stable bench or tailgate at a comfortable working height with a replaceable cutting board or other sacrificial surface beneath the entire cut. The support must be wide enough that the shingle lies flat and neither the work nor the cutoff can dive, twist, or spring as the blade exits. Clear the line beyond the cut; never bridge the shingle between supports or cut toward a truck finish, roof membrane, cord, hose, knee, or free hand. Restrain the station itself and keep loose bundles and finished caps off the cutting surface.

Verify material and plan the count

Release only verified source material to the station. Compare each bundle to the frozen control sheet. Stop on a wrong brand, line, color, size system, lot concern, wet or stuck bundle, broken corners, exposed reinforcement, delamination, heat distortion, or missing wrapper. Do not cut a wrong shingle into a shape that merely resembles the right cap.

Measure hips and ridges as separate continuous runs. Record each hip from its lower start to its ridge termination and each ridge between its actual endpoints, including intersections and any vented segment identified on the roof plan. Do not net all lengths into one undifferentiated total: separate runs can require their own starter, terminal, junction, or closure pieces under the exact instructions.

Count from documented exposure, not cap length. For each continuous run:

required full cap positions = round up(run length in inches ÷ manufacturer-stated exposure in inches)

Then add only the starter, terminal, junction, or special pieces the controlling diagram requires. Convert positions to source shingles using the manufacturer’s documented yield and round up to whole source shingles. Add project contingency only if the estimator, manufacturer, or responsible installer defines it; this guide invents no waste percentage.

Example without cross-system transfer: the current Owens Corning Supreme page states three cap pieces per full shingle and 5 inches exposure. Those values may drive a Supreme control sheet.

Create a run schedule and physical labels. Give every container a roof, plane, run, sequence, source-bundle, count, and control-sheet revision. Keep hips separate from ridges when the instructions require hips first. Keep factory caps separate from field-made caps. A mixed pile destroys the evidence that the correct source and pattern reached the correct run.

Select and ready the exact Hyde knife

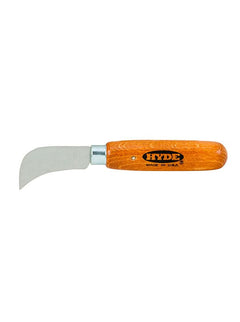

Choose either registered roofing knife by the work in front of it. Hyde expressly assigns roofing cutting to both current pages. The 22310 documents a hardened, tempered, honed high-carbon cutlery-steel blade and hardwood handle. The 22320 documents a stiff high-carbon blade and now expressly assigns that blade to scoring and cutting roofing; stiffness is useful when the paired cuts cross uneven tab and headlap construction. Neither page establishes a universal stack count, blade angle, sharpening angle, or permission to pry at this station. Use a sound knife with a clean, keen edge. A dragging edge makes the operator add force and turns a straight taper into a torn one.

Inspect before the first source shingle and after any changed cut quality. Remove from service a loose handle, moving blade, crack, severe corrosion, chipped edge, rolled edge, or contamination that prevents a secure grip or clean cut. Do not test sharpness with a thumb or finger. If the edge needs maintenance, use the knife’s approved shop procedure; do not invent a bevel or grind from this guide.

Another tool may be used only under its own instructions and is not silently treated as a 22310/22320 equivalent.

Mark and make the paired back-side cuts

Start with one verified source shingle, granule side down. Put the smooth, granule-free back side up on the sacrificial support. Orient every source shingle the same way: butt/tab edge toward one fixed station side, headlap toward the other. Do not rotate every other shingle for convenience; a consistent station orientation prevents a correct taper from being mirrored or placed in the wrong zone.

Transfer the exact manufacturer pattern to the back. Identify the separations that create the manufacturer-stated number of cap pieces. For each piece, mark the two taper lines as a pair—one line down each side of the concealed or headlap portion, terminating exactly where the controlling diagram shows. The two lines should mirror one another about that cap piece’s centerline unless the exact diagram says otherwise. Mark the entire source shingle before cutting and confirm: correct source, correct size track, correct piece count, correct butt/headlap orientation, and correct paired lines. Do not introduce a remembered angle, throat width, finished width, or cut length. GAF’s current 3-Tab guide, for example, calls for three pieces and a taper cut; its own diagram controls that geometry. Another permitted system may differ.

Set the body and hands before exposing the edge to the line. Stand balanced, square enough to the bench that the cutting shoulder can travel without twisting, with the hips and torso out of the projected blade path. Do not make this production cut from a crouch on a loose bundle or while reaching across the bench. Hold the knife in the dominant hand with a full, dry grip and the wrist close to neutral. Use the free hand to keep the shingle flat on the retained material, well to the side of and behind the active line—never ahead of the point, never beneath the shingle, and never on the narrow cutoff. Reposition the free hand before each member of the pair; do not reach across a live edge.

Support the line; do not hold the cutoff in the air. Move the shingle, not the body, until the first mark lies over sacrificial support for its full length. The cap body and taper waste both stay supported. If a guide is used, it must be stable, must not cover the line, and must leave enough bearing surface that the free hand can hold it without entering the cut path. A rocking straightedge is worse than a visible freehand mark; stop and restage it.

Make the first controlled pass from the granule-free side. Seat the blade at the far end of the first taper mark with the edge aligned to the line. Use a low working angle and draw the knife toward the cutting hand in a short, deliberate pull while the arm travels beside the torso—not toward the abdomen, thigh, free hand, or support hand. Finish or stop the stroke before the blade reaches the near edge of the station, then lift it clear. Do not saw rapidly, torque the blade sideways, or bear down until it skips. The first pass establishes a straight kerf.

Deepen the same kerf rather than forcing a one-pass cut. Reset at the far end and repeat the controlled pull in the established path. Use as many calm passes as the selected shingle needs; pass count is a result of material and edge condition, not a universal number. Keep the knife upright enough that the cut does not undercut the cap body or bevel into the neighboring piece. If the material is almost severed, support both sides and complete the cut through the existing kerf; do not tear the last fibers by bending the waste away.

Reset, then make the matching cut. Pouch or place the knife in its controlled station location before rotating or shifting the source shingle. Restage the second line over full support, set the free hand on retained material outside the path, and repeat the same far-to-near controlled passes. The operation is a pair: first side, clear and restage, second side, inspect. Do not alternate half-finished cuts among several shingles; complete and judge each pair before starting the next cap.

Separate pieces only by the manufacturer’s shown cut or perforation. After paired tapers are complete, make any tab-to-tab separations shown in the exact field-fabrication diagram from the back side with the same supported, controlled-pass method. If the manufacturer directs separation at factory slots or perforations, follow that path instead of extending a knife cut through an engineered feature. Never cut into the exposed face, seal area, or fastening zone simply to make the pieces release faster.

Inspect the first complete source shingle as the witness. Turn each cap granule side up without folding it. Confirm the documented yield, correct butt/headlap orientation, paired taper placement, and symmetry. Compare corresponding caps edge-to-edge: the tapers should match, the exposed portions should remain intact, and no cut should intrude into a manufacturer-defined exposure, seal, or fastening zone. Then inspect both faces and every cut edge for torn reinforcement, split laminate, delamination, missing weather surface, ragged fibers, crushed corners, or a hooked cut that wandered outside the mark. Reject any defective or asymmetric piece; do not hide it in a buried lap.

Run production in complete, traceable pairs. Once the witness matches the control sheet, repeat one source shingle at a time: back up, mark all lines, cut the first taper, restage, cut its mate, make authorized separations, inspect, count, and place accepted caps in the labeled run container. Use the manufacturer diagram as the master rather than copying yesterday’s cap. Recheck after any operator, bundle, lot, station, knife, weather, or instruction change. Reconcile accepted caps, rejects, and source shingles before opening the next lot; never recover a shortage by increasing exposure or mixing an unapproved source.

Stop branches: defects, tears, and misalignment

The cut leaves fibers, a torn mat, a split, delamination, or missing weather surface. Stop the lot. Do not patch, cement, trim smaller, or bury the defect under the next cap unless the exact manufacturer procedure permits that repair.

The witness is skewed, unequal, or outside a stated dimension. Reject it and revalidate the diagram transfer and station. Do not “average out” the error across a run. Exposure controls placement; it does not rescue bad fabrication.

Pieces from the same pattern no longer align. Stop at the last accepted piece. Check for source-product or size-system mixing, template drift, bundle distortion, and a changed control sheet. Preserve the suspect lot separately.

The shingle cracks or resists the required bend during handoff. Stop. Do not invent warming, heating, flexing, or adhesive. Use the exact weather provision. GAF’s 3-Tab instruction, for example, gives a product- and slope-specific cold-weather preheating rule; that number belongs only to that GAF track.

The blade drags, gums, chips, corrodes, or changes the result. Stop and follow Hyde’s exact maintenance instructions if available and the employer’s tool-inspection procedure.

The count runs short. Reconcile arithmetic, rejects, run lengths, yield, and special pieces. Do not steal coverage by increasing exposure and do not use a visually similar off-system shingle.

The ridge vent, slot, or substrate differs from the plan. Hold that run. The cap container remains fabrication inventory; it is not permission to redesign the assembly.

Installation handoff

Transfer by identified run. Deliver the labeled caps with wrapper identity, control sheet, current manufacturer instructions, count reconciliation, witness disposition, rejects, and holds. Do not hand over an anonymous mixed pile.

Keep installation rules manufacturer-specific. The installer—not this knife guide—applies the exact exposure, start direction, hip/ridge order, nail type/length/count/location, drive condition, vent detail, terminal treatment, sealant, weather, and warranty provisions. Inspect the first installed sequence against those instructions before repetition. Never “correct” a count by changing exposure or burying a defective cap.

Reconcile the run. Record installed, unused, rejected, and lost pieces. A neat ridge line or this local file does not prove warranty compliance, ventilation performance, wind resistance, or leak-free performance.

Can any three-tab shingle be cut into caps?

Only an exact current system document can authorize the source. Owens Corning Supreme and GAF 3-Tab Series provide named field-fabrication tracks; that does not authorize another product or brand.

Can laminated architectural shingles be used?

Only when the manufacturer says so for the exact product. IKO’s current hip-and-ridge guidance warns against improvising architectural field shingles as ridge caps and directs the reader to purpose-made cap products. That rule belongs to the IKO products it addresses; another system still requires its own current decision.

Which side do I cut from, and should I score, snap, push, or pull?

Support both retained piece and waste, establish the line with a controlled far-to-near pull, and deepen the same kerf with repeated calm passes rather than forcing or tearing. Any different separation method expressly printed for the selected shingle controls that product.

May I cut several shingles at once?

No stack count is established here. Do not infer one from stiffness, production pressure, or another guide.

Which Hyde knife should I choose?

Both are exact leads. Choose 22310 for its documented hardened, tempered, honed high-carbon cutlery-steel blade and hardwood handle; choose 22320 when its documented stiff high-carbon roofing-cutting blade is the better fit. Neither identity authorizes stacking, prying at the station, or a borrowed sharpening geometry.

What exposure, overlap, nails, and sealant should I use?

The exact cap/field-shingle instructions answer all four. Exposure is stated directly; overlap is the installed relationship created by the authorized piece and exposure. Nail and sealant rules are not transferred between systems.

What if it is cold, hot, wet, or windy?

Use the exact manufacturer and employer weather limits and OSHA access plan. This guide invents no temperature, heating method, wet-work permission, or wind threshold.

Does a ridge vent change the caps?

It can change the complete assembly. The cap, vent, roof-system, fastening, airflow, and warranty documents must agree before fabrication is released. Do not use a cap cut to alter a vent slot.

The older 22320 packet lacks an application claim; the current live exact-model page now supplies the roofing score/cut duty used here.
