How to Cut and Taper Straps and Belts — Complete Bench Guide

Evidence boundary: accepted exact-model claims establish the product names and blade dimensions below. This guide invents none.

The job — two different tapers under one name

“Cut and taper a strap or belt” can describe two geometrically different operations. Identify which one the drawing or sample requires before a knife touches stock:

Plan-view taper: the blank becomes narrower toward an end. Examples include a leather billet narrowing toward hardware, a decorative belt end, or a strap tongue shaped from a wider blank. The knife cuts all the way through along two laid-out edge lines.

Thickness taper or bevel: the blank keeps its width but becomes thinner toward an end. Examples include leather folded around a buckle bar, a lapped leather joint, or a belt end prepared to meet another layer without an abrupt step. The knife removes material from a specified face in progressive shaving cuts.

Some work requires both: cut the blank to length, narrow its outline, and then reduce thickness at the fold or overlap. Treat them as separate controlled stages. A correct outline does not prove a correct bevel, and a clean bevel cannot rescue an end cut short.

The finished result is not “thin enough by eye.” It is a strap or belt that:

runs straight, with its reference edge or centerline preserved;

has a clean end and clean retained edges;

bends, folds, or laps without a hard lump, sudden hinge, exposed reinforcement, or weak feather;

retains every specified full-thickness area around holes, slots, stitching, fasteners, and load-bearing transitions;

dry-fits the actual buckle, keeper, clamp, connector, or mating belt end before irreversible assembly;

remains traceable to the material lot and approved scrap standard when the work is repeated.

No one generic taper satisfies all of those assemblies. Hardware and joint design set the geometry.

Exact tool selection

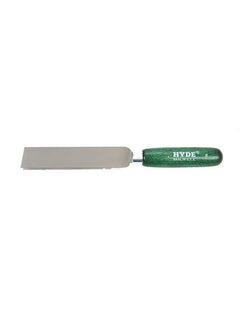

50500 — Square Point Knife #6 for the long leather draw

Hyde's accepted exact-model catalog name is Square Point Knife #6. Its documented blade dimensions are 5" × 1" × .058".

Use the 50500 when matching scrap proves that a long, slicing draw controls the material:

cutting a leather strap blank across or along a straight layout;

drawing a long plan-view taper through leather;

shaving a gradual flesh-side transition for a buckle fold or leather lap;

working softer leather or fabric-like strap stock where the heavy blade would feel harsh or resist the intended transition.

Its length is reach, not a capacity claim. Its flexibility is useful only while the blade tracks the marked line without visible bowing. If resistance makes the blade dish, wander, or require body weight, stop. Do not turn a limber bench knife into a heavy-stock knife by forcing it.

60450 — Regular Square Point Knife for dense strap and belting stock

Hyde's accepted exact-model catalog name is Regular Square Point Knife. Its documented blade dimensions are 4" × 1" × .083".

Use the 60450 when matching scrap proves that stiffness, rather than reach, holds the line:

through-cutting thick, hard leather strap stock;

cutting or beveling dense rubber or synthetic belting;

preparing a short, controlled taper where a limber blade deflects;

making progressive cuts through material that grips a thinner blade.

The 60450 has a bare hardwood handle, not a finger guard. The heavy gauge permits higher force, but it does not authorize higher risk. If the work cannot be fixtured so every hand and body part remains outside the stroke and breakthrough path, this exact union has reached its safety boundary.

The choice is proved by the cut

Use same-lot scrap, supported and marked like the workpiece.

If the 50500 makes a clean, controlled draw without bowing, it is the more responsive choice for the long leather cut or flesh-side taper.

If the 50500 deflects but the 60450 holds the line with controlled progressive strokes, use the 60450.

If the 60450 ploughs, compresses, or tears soft stock while the 50500 slices it cleanly, use the 50500.

If neither knife cuts without unsafe force, distortion, delamination, reinforcement damage, or loss of the line, neither is authorized merely because both appear in the row.

Blade dimensions describe the knives.

Read the material before laying out the first line

Leather: identify face, zone, and direction

For full-grain, top-grain, corrected-grain, or otherwise faced leather, distinguish:

grain side: the outside or finished face;

flesh side: the underside, usually more fibrous;

backbone and shoulder zones: generally firmer and more stable;

belly, flank, or loose zones: often stretchier and less uniform.

Those are working categories, not a promise about a particular hide. Flex and pull matching scrap in both directions. Watch which orientation lengthens, curls, wrinkles, or bunches more. A load-carrying strap normally needs consistent direction and behavior along its length; a pair of billets normally needs compatible grain, stretch, temper, color, and surface direction.

Do not hide a loose, damaged, scarred, cracked, heavily wrinkled, or unexpectedly thin zone inside a taper. Thinning concentrates the consequence of any material weakness. Move the pattern or reject the blank under the project standard.

For a thickness bevel on ordinary faced leather, the grain side commonly remains intact while material is removed from the flesh side. That is authored leather-bench practice, not an exact-model Hyde instruction.

Rubber, polymer, and industrial belting: identify the construction

Do not call all black flexible sheet “rubber.” Determine whether the stock is:

homogeneous rubber or elastomer;

fabric-inserted or fabric-faced belting;

laminated synthetic belt;

leather machine belting;

thermoplastic or heat-sealable webbing;

reinforced material containing fabric, cord, wire, or another load-bearing layer.

The construction determines whether a hand taper is permitted at all. A reinforced belt may have a manufacturer-defined splice geometry, ply exposure sequence, adhesive system, and minimum retained structure. A hand knife can physically cut reinforcement while destroying the belt's designed load path.

Never infer that the absence of visible cord means the stock is homogeneous. Inspect the product data, cut edge, supplier identification, and approved sample. Unknown construction is a verification hold.

Woven webbing and strapping: control fray before choosing the method

Woven stock can distort under a straight blade and may fray after cutting. A sharp square point can make the mechanical cut when the material stays flat and controlled on scrap, but this guide does not authorize a heat-sealing method, chemical edge treatment, or flame. Those methods depend on fiber identity, ventilation, fire control, coating, and the end-use specification.

If the approved construction requires a fused edge, die-cut end, stitched turnback, molded termination, or manufacturer-made fitting, use that specified process. Do not substitute a clean knife cut for an edge treatment that carries the load.

Moisture, oil, finish, and temperature are controlled variables

Start with the material in the condition specified for layout and assembly.

Do not wet leather merely because it resists the knife. Moisture can change dimensions, color, temper, finish, and adhesive behavior.

Do not add oil, soap, solvent, powder, or lubricant merely to make rubber release the blade. It can contaminate the bond or finished surface.

If conditioning or a release treatment is explicitly allowed, test it on matching scrap, compare against an untreated control, and judge the piece only after it returns to the specified assembly condition.

Convert the assembly into a layout

Choose and preserve the reference the finished assembly actually uses:

a straight finished edge;

a hardware shoulder;

a fold line;

a stitch line;

the end of an overlap;

a factory edge approved by the project;

a master pattern, drawing datum, or approved sample.

Do not measure every feature from a raw edge merely because it is convenient. Raw stock can be bowed, stretched, or out of square.

For a matched pair, lay out both pieces together and label mating face, orientation, end, and side. A technically correct left-hand piece and technically correct right-hand piece still fail if one is reversed, cut from a different stretch direction, or tapered on the wrong face.

Derive every dimension — invent none

The layout comes from:

the production drawing or pattern;

the actual buckle, keeper, clamp, connector, or mating component;

an approved original sample that has not stretched or worn beyond use as a master;

the belt or splice manufacturer's procedure;

the sewing, riveting, adhesive, or fastening specification;

a documented fit allowance owned by the project.

Do not copy a worn belt blindly. Service stretch, elongated holes, compressed folds, and trimmed repair ends can make the old part a record of failure rather than a master.

Do not invent a “standard” taper length, point length, bevel angle, or remaining thickness.

Lay out a plan-view taper

Mark the finished length and the no-cut end boundary.

Establish the centerline or the retained straight edge.

Mark the full-width keep area required for the fold, holes, slot, stitch line, fasteners, or connector.

Transfer the approved taper symmetrically from the centerline, or from the designated fixed edge when only one side narrows.

Extend each cut line into waste so the knife can enter and exit cleanly.

Mark waste unmistakably.

Check the final narrow end against the actual hardware or master before cutting.

For a decorative point or radiused end, use the actual approved template. A square-point knife is optimized for straight draw cuts and broad changes of direction; it does not become a punch or small-radius cutter because the drawing contains a tight end shape. If the exact union cannot follow the template without twisting, freehanding, or stabbing, use the process specified for that geometry.

Lay out a thickness taper or bevel

Mark the fold, lap, or termination boundary from the hardware or joint specification.

Mark the transition limit on the face approved for material removal.

If the final edge must retain substance rather than feather to nothing, identify that boundary from the project specification or approved sample.

On paired parts, transfer the same references and confirm that the tapers face the correct directions.

The layout describes where the taper begins and where it may end. It does not tell the hand how much to remove in one pass. The approved scrap and repeated dry fit control depth.

Mark without contaminating or damaging the stock

Test the marking method on same-lot scrap. A usable mark is visible during the cut and removable or permanently hidden in the finished assembly. Check for:

color or solvent migration through leather;

show-through on pale or thin stock;

weakened fibers from an aggressive scratch line;

poor adhesion over wax, chalk, ink, or transfer film;

swelling or staining from wet marking media;

marks hidden too early by the first shaving pass.

Keep the master pattern out of the knife path unless it is explicitly a cutting template. Weight or clamp patterns outside the projected stroke; never use the support hand as a movable pattern weight beside the edge.

Bench, support, straightedge, and work holding

Use a sacrificial cutting surface for through-cuts

Support the entire blank on a clean, flat, stable cutting board that the blade may safely enter. The board must:

prevent the stock from sinking, draping, or rocking;

support both retained piece and waste through breakthrough;

contain no fastener, grit, hardened adhesive, metal fragment, glass edge, or previous deep groove under the cut;

remain fixed on the bench;

be replaceable or serviceable when grooves begin steering the blade.

Do not through-cut into metal, stone, glass, or the finished bench. A hard strike can roll or chip the maintained edge, and a slick surface can let the stock escape.

Support long stock so its own weight does not pull the line sideways. Bring the whole working length onto the bench or use aligned supports. A belt hanging over the edge changes tension as waste releases.

Use continuous support for a thickness taper

A shaving bevel needs a smooth, non-yielding support directly beneath the working field. If the stock sinks, the blade presentation changes and creates a hollow. If a seam or groove lies under the taper, it can print into leather or steer the cut.

Arrange the end so each pass can exit into clear space or waste without striking the support. Never let the blade finish against a clamp, ruler, buckle, rivet, or hardware part.

Straightedges guide lines; they do not protect fingers

Use a sound, rigid straightedge suited to knife work, with enough height and grip to resist ride-over and movement. A cork-backed or otherwise non-slip metal rule is common shop practice, but suitability depends on condition and policy. A damaged, bowed, polished, or low-profile guide can be more dangerous than a clearly marked free line.

Put the straightedge on the retained side when the pattern permits, so a small drift enters waste.

Clamp it outside the active blade path when possible.

Keep fingertips behind the guide edge, never curled over it.

Confirm the guide remains aligned before every progressive pass.

Stop if the knife begins shaving the guide or climbing it.

Fixture small, short, or springy work

If a piece cannot be held while every hand stays outside the complete path, use a clamp, stop, hold-down, vacuum fixture, or expendable handling tab appropriate to the material. Protect finished grain and coated faces from clamp marks. The fixture must not:

conceal the marked line;

distort the stock;

sit in the blade exit;

become loose as the end gets thinner;

force the knife toward the operator.

Never cut a strap held in the palm, stretched between two people, braced against a thigh, or pulled toward the torso.

PPE and knife-control gate

PPE is selected under the employer's hazard assessment, applicable rules, and the material and chemical safety information. Assess at minimum:

a well-fitting cut-resistant glove for the non-knife hand where compatible with the work;

cut-resistant apron or body protection when a dropped or deflected blade could reach the operator;

eye protection for sharpening, honing, wire or cord exposure, and any operation that can release particles;

footwear appropriate to a dropped knife or heavy belt end;

chemical-resistant gloves and ventilation when approved cleaners, adhesives, primers, finishes, or conditioning agents are present;

machine-specific lockout/tagout and stored-energy controls if the belt is associated with equipment.

A glove is not cut-proof and does not make a hand an acceptable clamp. PPE never substitutes for a stroke that ends in empty space.

Remove the belt or strap from service and make the work mechanically safe. A belt on a machine is not a bench blank. Follow the equipment's energy-control procedure.

Inspect the knife: handle, blade seating, ferrule or joint, edge, corrosion, contamination, bends, chips, and cracks. Quarantine a defective tool.

Confirm the edge is keen on approved scrap, never on skin.

Confirm the board, supports, guide, clamps, blank, and waste cannot move.

Trace the complete stroke, breakthrough, and run-out with the edge away from the material.

Move hands, body, cords, hardware, and bystanders outside that envelope.

Establish where the knife stops if the material releases early.

Keep only the active knife exposed; secure the other with its edge covered.

Stop for poor light, fatigue, distraction, contamination, unstable footing, or any setup that requires a hand in front of the edge.

There is no built-in finger stop to arrest a sliding hand. That makes path control load-bearing.

Prove the setup on matching scrap

The scrap trial is the process specification this guide cannot invent.

Select scrap from the same material, lot, zone, orientation, thickness, finish, reinforcement, and condition as the workpiece.

Lay out the same cut and representative taper, including the same support and intended pass direction.

Test the 50500 first when the work is leather or another material expected to reward a long slicing draw.

Test the 60450 when the 50500 visibly deflects or the material is dense rubber, heavy strap, or belting stock.

Make a light establishing stroke. It should create a controlled track without moving the guide, buckling the stock, or bowing the blade.

Deepen the same track with moderate progressive passes. Never answer resistance with a single forced stroke.

For the thickness taper, take one restrained shaving pass and inspect the material before a second.

Dry-fit the trial in the actual hardware, fold, stack, lap, clamp, or approved test fixture.

Flex or load the trial only by the project's approved verification method.

Retain, label, photograph, or otherwise record the successful trial as the reference for the project pieces.

The setup fails if the trial shows:

a wandering through-cut;

visible blade bow;

ragged, compressed, fused, or torn edges;

a sudden hinge or hollow in the bevel;

exposed, nicked, displaced, or cut reinforcement;

a joint that fits only when wet, stretched, or hand-compressed;

uncertain retained strength.

When the trial fails, change one variable at a time—edge condition, support, direction, work holding, knife selection, or process. Do not learn by consuming the project blank.

Through-cut the strap or belt blank

Square and preserve the reference

With the blank fully supported, verify the chosen reference line again. If the end is angled, use the documented angle from the pattern; this guide supplies no substitute.

Confirm which side of the line is waste. Marking waste before the knife is drawn prevents the common, irreversible error of cutting to the correct line from the wrong side.

Establish the track

Set the straightedge or cutting template, recheck alignment, and present the chosen square-point edge in a low slicing draw. Make the first pass light. Its job is to establish a groove that later passes can follow, not to part the material.

Start from an outside edge. The square end is intentionally not a piercing point; do not stab it into the middle of a blank or twist the corner to create an interior start.

Deepen with progressive strokes

Repeat along the same track:

let a length of sharpened edge travel through the material;

keep the blade upright enough to preserve the intended cut face while still slicing;

use the guide and groove, not sideways wrist pressure, to hold the line;

support retained piece and waste until the final fibers release;

stop immediately if the guide moves, the blade bows, the material bunches, or the edge leaves the track.

Rubber and dense stock grip the blade. Progressive strokes are the control, not a sign that the knife is failing. A heroic single pass trades accuracy for breakthrough risk.

Control breakthrough

As the cut nears the board, reduce force. Confirm no hand, body part, clamp, or hardware lies beyond the exit. Let the edge finish into the sacrificial support rather than jerking upward or sideways.

Do not pull uncut fibers apart. If a bridge remains, lay the work flat and sever it in the established line. Tearing can delaminate a belt or drag a leather edge off square.

Verify the end before any taper

Set the knife down safely and check:

squareness or specified end relationship;

clean, fully severed edge;

no undercut or dish;

no shifted reinforcement or delamination;

correct orientation and face;

compatibility with the actual hardware or mating piece.

If the end is short, no taper fixes it. Quarantine or reclassify it under the project rule instead of silently moving the fold or overlap.

Cut a plan-view taper

Cut one side while the blank is still stable

Keep the widest, most stable part of the blank fully supported. Put the guide on the retained side of the first taper line. Begin from an outside edge or waste extension and establish the track with a light draw.

For a long leather taper that stays controlled, the 50500's five-inch edge can carry a continuous slice. For dense stock that makes it deflect, the 60450's heavy gauge can hold a shorter progressive line. The scrap result—not preference—decides.

Use tangent cuts for broad changes of direction

If the approved outline is not perfectly straight, treat a broad curve as a sequence of short, overlapping tangents:

rotate the work so the active segment stays in front of the cutting shoulder;

keep the retained edge continuously supported;

leave the final line visible until a light truing pass;

cut reliefs in waste only when they cannot enter the retained shape;

never twist a planted square point to force a radius.

No minimum radius is claimed for either knife. If matching scrap cannot reproduce the template without flats, overshoot, or blade twist, this exact union is not the correct geometry process.

Re-register before cutting the second side

Do not assume the first cut preserved the centerline. Confirm that the finished narrow end remains centered or maintains the designated fixed edge.

Cut the second side by the same sequence and pass direction that the approved scrap proved. Avoid alternating random directions merely for convenience; material stretch and blade behavior can make two nominally identical cuts finish differently.

Meet an end point without sweeping around it

Where two taper lines meet a point, flat, or terminal curve, cut each line to its documented endpoint. Do not sweep the knife around a tight end while it remains buried. That rounds or overshoots the geometry and loads the blade sideways.

If the end requires a punch, die, round knife, clicker, controlled machine cut, or other specified process, stop the square-point cuts at the authorized handoff. Exact-union discipline does not mean forcing two tools to perform every possible end shape.

Check planform before thinning

Compare the outline with the master or drawing under raking light:

reference edge or centerline retained;

sides straight or fair to the template;

no hook at the exit;

matched pieces aligned in orientation and geometry;

hole, slot, stitch, and full-thickness keep-out fields still present.

Do not “smooth” an error by trimming the entire strap narrower. Determine whether the project allows local truing or requires a new blank.

Make a leather thickness taper for a fold, buckle, or lap

Work from the approved face

Support the full transition field. Keep the marked limit visible and every full-thickness keep-out area protected.

Do not place finished grain on a dirty, rough, or deeply scored board. A perfect bevel on flesh can still fail because grit embossed the visible face.

Start at the waste end

Begin where a small error is least likely to invade the full-thickness body. Present the 50500 low enough to take a controlled shaving rather than wedge.

Use the 60450 only when the approved scrap proves the heavy gauge is required and can make a controlled shaving without tearing or creating a hard ledge. Its stiffness is useful on dense stock but less forgiving when the hand changes angle.

Build the taper as a field, not a notch

Take restrained, overlapping shavings:

Remove a small amount at the free end.

Read the shaving, cut surface, grain face, and transition.

Extend the next pass toward the marked limit without crossing it.

Reduce the bite as the pass approaches full thickness.

Blend neighboring passes so no isolated hollow forms.

Stop frequently to sight and feel the whole field with the knife secured.

Do not park the edge on one thick spot and dig until it disappears. Repeated local excavation creates a hinge. The taper must progress smoothly from the end into full thickness.

Protect holes, slots, stitches, and hardware shoulders

Do not thin through a marked keep-out field.

Round holes and buckle slots ordinarily belong to punches, slot punches, dies, or another specified process. Do not twist the square corner of either knife to bore a hole. A ragged knife-made opening becomes a tear starter and does not belong in a load-bearing strap merely because it is later hidden by hardware.

Dry-fit repeatedly

After each controlled round of passes:

wrap the scrap or workpiece around the actual buckle bar or approved gauge;

place it through the keeper or clamp;

assemble the dry lap against its mating part;

compare the transition with the approved sample;

check that the fold occurs where designed, not at an over-thinned hinge;

confirm that grain, reinforcement, holes, and stitch fields remain sound.

Stop when the functional fit and approved reference agree. Do not continue for cosmetic thinness. There is no authorized universal remaining-thickness rule.

Bevel a dense strap, rubber belt, or industrial lap

Obey the belt or joint specification first

A rubber or synthetic lap may require a defined scarf, step, finger, cover removal, ply treatment, surface roughness, adhesive, pressure, and cure. Those details belong to the belt maker or engineered repair procedure. This guide covers controlled hand cutting with 60450; it does not design the joint.

If the belt is reinforced:

identify each layer before cutting;

mark the permitted exposure and keep-out boundaries;

stop at the designated layer;

never substitute “until it looks even” for a ply specification;

treat any nicked cord, wire, fabric, or load-bearing layer as a hold for engineering or manufacturer disposition.

Establish the bevel in progressive lines

Support and fixture the end so it cannot curl or lift. Mark the bevel boundary and layer stops. With the 60450:

establish a shallow guide cut on the approved face;

deepen or widen it in progressive strokes proven on same-construction scrap;

keep the blade aligned with the specified plane;

clear released material without prying against the retained belt;

pause at every visible construction change;

compare both sides and the mating end continuously.

Do not saw across cords, lever plies apart with the blade, or use extra force to compensate for an unverified construction. The square point's refusal to puncture does not protect reinforcement beneath the long cutting edge.

Keep the transition flat and compatible

a hollow that starves adhesive;

a ridge that creates a thick running joint;

feathered loose rubber;

oil, water, honing compound, or release agent in the bond field;

exposed structure beyond the approved limit.

Surface preparation, buffing, cleaning, priming, adhesive open time, assembly pressure, cure, and service release remain the joint system's procedure. A knife-cut bevel is only one input.

Production repeatability and matched work

Make a master from proof, not from the first guess

After a same-lot scrap passes dry fit and the project's verification:

retain it as the master or transfer it to a stable template;

mark material, lot, face, orientation, knife, pass direction, and assembly role;

label every unresolved or supplier-dependent variable;

keep failed trials for comparison until the setup is released.

Do not promote a trial to master merely because it looks clean. It must pass the functional check.

Preserve sequence

For repeated pieces:

inspect and orient the material;

establish the same reference;

lay out length, outline, keep-out fields, and taper;

make and verify the through-cut;

make and verify the plan-view taper if required;

make the thickness taper;

inspect the knife and support before the next piece.

Sequence changes can change outcome. Cutting holes before thinning, thinning before final length, or reversing the pass direction may reduce support or move a critical feature. The production traveler owns any approved alternate sequence.

Stop for drift

Pause the run when:

the shaving or cut face changes;

the guide begins moving;

board grooves steer the edge;

the knife develops a nick, roll, corrosion spot, or loose handle;

material temper, thickness, coating, or reinforcement changes;

paired pieces stop matching;

dry fit begins requiring hand force not present in the master.

Service the process, re-prove on scrap, and segregate the affected pieces. Do not let a dulling maintained edge turn gradual process drift into a batch defect.

Inspection and acceptance

The cut face is continuous, with no unsevered bridge, tear, deep dish, or exit hook.

The retained edge is not compressed, rolled, delaminated, scorched, or contaminated.

Reinforcement remains exactly as the approved design requires.

Plan-view taper

The reference edge or centerline is preserved.

Both sides match the approved template and intended symmetry or asymmetry.

The narrow end dry-fits the actual hardware.

No tight turn was forced into a flat, notch, or overshoot.

Matched parts agree in geometry, face, direction, color, and stretch behavior.

Thickness taper

The transition is smooth, without a sudden hinge, ledge, hollow, or accidental cut-through.

Full-thickness keep-out fields remain intact.

Leather grain remains uncut and undistorted when the design requires it.

Belt layers or reinforcement are exposed only where the approved procedure requires.

The fold or lap lies correctly without being hand-stretched into compliance.

Both mating surfaces remain compatible with the specified next operation.

Assembly proof

Dry-fit before punching, stitching, riveting, cementing, vulcanizing, clamping, or otherwise making the part difficult to recover. Compare against the approved scrap, hardware, master, and mating part. If the project has a proof-load, flex-cycle, bond coupon, dimension, or visual standard, that test—not this prose—decides acceptance.

What goes wrong — diagnose before removing more material

| Symptom | Likely boundary | Corrective action |

| Straight cut wanders | Guide moved, edge dulled, blade deflected, stock pulled off the bench, or sideways hand pressure replaced the reference | Stop. Restore support and edge condition, secure the guide, and re-prove on same-lot scrap. Use 60450 only if its stiffness—not added force—solves verified deflection. |

| End is diagonal when it should be square | Datum or square was wrong, blank shifted, or breakthrough pulled one side | Do not move the fold or hardware to hide it. Recheck the reference and recut only if the design permits loss of length; otherwise remake. |

| Cut face is fuzzy, torn, or compressed | Dull/contaminated edge, pushing instead of slicing, yielding support, or unsuitable method | Clean and service the edge, improve support, use progressive slicing passes, and retest. Stop if the material still tears. |

| Blade sticks in rubber or dense stock | Material grips the cheeks, cut is too deep for one pass, edge is contaminated, or stock construction is outside the method | Withdraw without twisting, clean under the approved process, reduce each pass, and retest. Never wrench a planted blade sideways. |

| 50500 bows visibly | Material or force exceeds the controlled behavior of the limber .058" blade | Stop. Test 60450 on scrap if the geometry and material suit it; otherwise change process. Do not “correct” flex by leaning harder. |

| 60450 ploughs or tears soft leather | Heavy gauge is too stiff for the stock, edge/presentation is wrong, or support is dragging | Test a keen 50500 with a lower slicing draw on scrap. If neither controls the material, stop. |

Remake when hardware fit or strength field is compromised. |

| Taper sides have flats or hooks | Tangent strokes too long, exit passed the endpoint, or the work was not rotated | Shorten and overlap strokes, rotate the work, and leave a light final truing pass. Do not keep narrowing the whole strap to erase one error. |

| Thickness taper has a hard ledge | Passes stopped at one line with no blended transition | Blend only the high side with restrained overlapping passes while protecting the full-thickness keep-out. Recheck dry fit after every pass. |

| A hollow or sudden hinge appears | Repeated local digging, yielding support, or changing blade presentation | Stop cutting that area. Assess retained strength under the project rule; remake a load-bearing or uncertain part. More shaving cannot fill a hollow. |

| Grain face is cut, dulled, stretched, or embossed | Wrong working face, blade dive, dirty board, clamp damage, excessive moisture, or incompatible finish handling | Stop. Grain damage is not repaired by more tapering. Quarantine and correct the setup on matching scrap. |

| Leather edge curls or waves | Stretch direction, loose hide zone, moisture, or excessive bite changed the blank | Change material zone or orientation, shorten passes, restore dry stable condition, and re-prove. Do not force a wavy blank flat in hardware. |

| Woven strap frays | Fiber construction needs a specified edge treatment, edge is dull, or support let the weave move | Stop. Confirm fiber and termination method. A knife can sever the webbing but may not complete the approved end. |

| Belt delaminates | Unsupported cut, prying, incompatible chemistry, or construction not suited to the hand method | Hold the piece for manufacturer or engineering disposition.

| Reinforcement is nicked or exposed in the wrong place | Construction was unknown, layer stop was missed, or bevel geometry was improvised | Stop immediately. Do not bury the damage in adhesive. |

| Fold cracks or finish crazes | Material, coating, conditioning, bend requirement, or remaining thickness is incompatible | Stop.

| Lap is thick at one side | Uneven taper, off-center layout, mismatched material thickness, or mating ends reversed | Compare both faces to the master; correct only verified high areas within the allowed geometry. Remake when the joint plane or strength is uncertain. |

| Joint fits only while stretched or damp | Trial was judged in the wrong condition or layout is short | Let material return to specified condition and reassess. Do not assemble under hidden tension unless the design explicitly requires it. |

| Hole or slot tears toward the taper | Full-thickness keep-out was invaded, hole was knife-cut, or edge distance/layout is wrong | Stop. This is a design or fabrication failure, not a cosmetic defect. Remake or obtain engineering disposition. |

| Every later piece differs from the master | Edge wear, material-lot drift, board wear, guide movement, or undocumented sequence change | Pause production, segregate since last verified check, restore process, and run a new control scrap. |

| Knife leaves dark marks or rust | High-carbon steel remained wet, corroded, or carried residue | Remove the knife from work, service it under the approved maintenance process, and inspect affected material for staining or bond contamination. |

| Handle, ferrule, or blade moves | Tool is defective | Quarantine immediately. Do not tighten it through improvised striking and do not finish “one last cut.” |

| More force seems like the only answer | Edge, support, selection, material, or process is wrong | Stop. There is no force allowance in the accepted product claims and no reason to trade control for progress. |

Honest boundaries

Holes, slots, and repeated internal geometry usually belong to the specified punch, die, drill, clicker, or controlled cutting process. The square corner is not a boring tool.

A full-width leather split is not an end taper. Use a splitting process designed to control thickness across the piece.

A production scarf with a controlled ratio or tolerance may belong to a skiving machine, splitter, belt-preparation machine, die, or other guarded process. Hand work is not automatically acceptable because a knife can remove material.

Heat sealing and chemical edge treatments are not covered.

A strap that carries people, overhead loads, fall protection, lifting loads, restraint loads, or other safety-critical service is not released by a visually clean hand taper. Use the certified material, fabrication process, inspection, and proof requirements for that system.

Live equipment is outside the bench boundary. De-energize, isolate, and control stored energy under the applicable procedure before a belt becomes a workpiece.

Changing method when the exact union cannot control the material is correct process selection, not failure with a hand knife.

Tool care — a maintained edge is part of the process

Preserve that ownership model:

Inspect before and after the job.

Remove leather dust, rubber residue, finish, marker, and approved process debris without soaking the hardwood handle.

Dry the steel immediately after damp material or water-based cleaning.

Use only a protective film compatible with the next material and remove it before cutting a bond field.

Strop or hone when the edge begins compressing or dragging instead of slicing.

Use a stone or approved sharpening process when stropping no longer restores the edge.

Preserve the established bevel; do not invent a more aggressive geometry.

Keep abrasive grit, filings, honing compound, and slurry away from laid-out stock and adhesive surfaces.

Store each knife with the edge covered in a rack, sheath, or guarded station that has been physically verified for fit and retention.

Never leave either knife loose under a belt, hide, pattern, or offcut.

Which knife should I use for a leather belt blank? Start by proving the 50500 on same-lot scrap. Its documented 5" × 1" × .058" blade is the long, limber choice in this exact union. Use 60450 only when dense stock makes the 50500 deflect and the heavy blade produces a cleaner controlled cut.

Its dimensions do not establish a universal belt capacity.

Use the lowest stable slicing presentation proven on matching scrap for through-cuts; for a thickness taper, use the project geometry and approved scrap rather than a generic hand angle.

How long should the taper be? As long as the actual pattern, hardware, fold, or joint specification requires. There is no universal proportion and no authorized number in the exact-model claims.

How thin should a leather buckle fold be? Thin enough to pass the project's hardware and assembly check while retaining the specified grain and strength fields; there is no universal remaining thickness. Prove it on same-lot scrap.

Should I cut with or against the grain? Do not guess direction from appearance.

Can I cut buckle holes or a slot with the corner of the knife? No. Use the specified punch, slot punch, die, or other controlled process. Twisting the square corner makes a ragged tear starter and side-loads the blade.

Can I use one heavy pass to get a cleaner edge? No. Dense leather, rubber, and belting are controlled with progressive strokes in the same track. One forced pass increases deflection and breakthrough risk.

Can I taper a reinforced belt by eye? No. Use the belt maker's or engineer's layer map and splice geometry. Unknown construction or an unapproved layer stop is a hold.

Why keep the grain face on a leather thickness taper? For ordinary faced leather, removing from the flesh side commonly preserves the continuous grain face through the fold or lap.

Do I need a cut-resistant glove? PPE follows the hazard assessment. A suitable glove on the non-knife hand may reduce injury severity, but no glove makes a hand safe in the blade path. Fixture and path control come first.

When is a machine the correct answer? When repeatability, production rate, tight thickness control, safety-critical service, hard/reinforced stock, or the approved joint procedure exceeds what the hand trial can control.

The history footnote — the shoe knife follows the strap into industry

The square-point knife is older than Hyde and has no defensible named inventor. It is an anonymous trade pattern from the shoemaker's and leatherworker's bench: a long cutting edge ending in a blunt square nose, valuable precisely because it refuses the piercing work of a pointed knife. A shoemaker cutting soles and uppers also cut the straps, billets, welts, and leather components that made footwear and harness function. The same edge geometry moved naturally into saddlery.

Army saddler's chest inventory specifying a “shoe knife, square point.” Those inherited references show a mature pattern crossing from footwear into harness work; they do not establish an inventor, a universal working method, or the exact size used for every historic strap.

Mechanization did not erase the hand knife. Lyman Reed Blake patented a sole-sewing machine in 1858; Gordon McKay acquired and improved the system, and the McKay stitcher helped turn Massachusetts shoemaking into factory production (Massachusetts Historical Society — The McKay Stitcher, DPLA — Gordon McKay and the Massachusetts shoe industry, Britannica — Lyman Reed Blake). Machines stitched faster, but leather still arrived as variable material that had to be oriented, cut, tapered, fitted, and corrected at the bench.

That was the industry Isaac P. Hyde entered in Southbridge, Massachusetts. Hyde's own histories describe a young knife maker visiting shoe and textile factories, learning the needed pattern, and making industrial hand knives to the trade's requirements (Hyde Tools — Our Story, Hyde IBS — History, Hyde Tools — 150th Anniversary).

The 50500 is the long, limber #6 bench knife, suited to the leather strap and long draw. The 60450 keeps the square end and one-inch width but moves to the heavy .083" gauge for dense strap, rubber, and belting. The tool did not need a new silhouette when flexible power transmission and industrial belting replaced some of leather's old work; it needed a stiffer blade. Shoe bench to saddler's chest to belt shop is the honest arc.

Accepted exact-model dimensions:

50500: 5" × 1" × .058".

60450: 4" × 1" × .083".

No other working dimension in this guide is represented as an accepted Hyde exact-model claim.

Application altitude: cut-and-taper assignment, 50500 leather/long-draw weighting, and 60450 heavy-strap/rubber/belting weighting are authored from the row register, product guides, operator fuel, and industrial-knives line semantics.

No material capacity: no accepted exact-model claim supplies maximum leather thickness, belt thickness, strap width, reinforcement class, cut length, force, production rate, or duty cycle for 50500 or 60450.

No taper geometry: Hyde supplies no working angle, bevel angle, taper length, taper ratio, remaining thickness, pass count, fold rule, hole clearance, stitch clearance, or joint geometry for this row.

Leather interpretation: grain/flesh identification, hide-zone and stretch-direction workflow, ordinary flesh-side bevel practice, conditioning cautions, and functional dry-fit method are authored trade practice. Verify against the actual leather, finish, adhesive, and construction.

Belting interpretation: layer identification, reinforcement stops, lap/scarf/step geometry, and post-cut preparation belong to the belt maker or engineer. The 60450's accepted dimensions do not authorize cutting any particular reinforced belt.

This guide does not select a glove rating or release a belt from stored-energy control.

History: Hyde founding remains “early-to-mid 1870s” because company sources conflict on 1870 versus 1875.
