Cut a Ceiling Line with a Hand Shield

It is a hand-application method, not an airless guide, and it routes textured ceilings away from movable straightedges.

Job: Brush or mini-roll wall paint to a smooth ceiling boundary without installing a full tape line

Time: Two to six hours for a prepared room; access moves, corners, wiping, and coating wet edge determine duration

Difficulty: Intermediate — the blade makes the boundary easier, but overhead access and edge loading still demand repeatable technique

Everything else: specified wall coating; compatible angular brush and optional mini roller; stable access equipment; fixed room protection; coating-approved preparation, cleaner, PPE, ventilation, ignition, and waste controls; clean wipes; cutting pot or tray; inspection lighting; layout tool where the junction is ambiguous

A brush already has a hard edge, so the shield does not create a line from a soft spray fan. It lets the operator load the top band confidently while a physical edge guards the ceiling. The trade is a second tool in the off hand and a strict clean-lift cycle.

This method starts with an honesty gate: the ceiling junction must be smooth enough to seat. Knockdown, popcorn, heavy orange peel, deep stipple, and irregular repairs create valleys beneath a straightedge. Tape can bridge them too. Route substantial texture to a quality angular brush and a practiced cut-in method.

Inspect the full junction

Walk every wall under strong light.

smooth and textured ceiling zones;

cracks, open joints, caulk ridges, and repairs;

ceiling paint condition and cure;

wall and ceiling variation;

inside/outside corners, soffits, beams, casings, and fixtures;

safe access positions.

Resolve whether the wall color meets the ceiling plane, a small caulk bead, crown molding, or another feature. If the visible junction wanders, obtain direction before laying a mechanically straight segment that exposes the variation.

Dry-seat a clean candidate tool. Look for gaps from the wall side. Do not assume additional hand pressure will seal texture.

Classify repairs separately from original ceiling

A room described as smooth can still contain patched fastener pops, joint ridges, caulk repairs, and localized texture. Mark each irregular segment. A shield that passes on the original gypsum face may bridge a six-inch repair.

Do not sand or scrape the ceiling merely to make the blade fit unless that preparation belongs to the approved finish system. A local brush cut can be the better solution.

Check corner buildup from prior repainting. Repeated coats can round the junction or leave a hard ridge that shifts the visible line. Resolve whether the new color follows the current surface or a design datum before production.

Select the curved hand shield

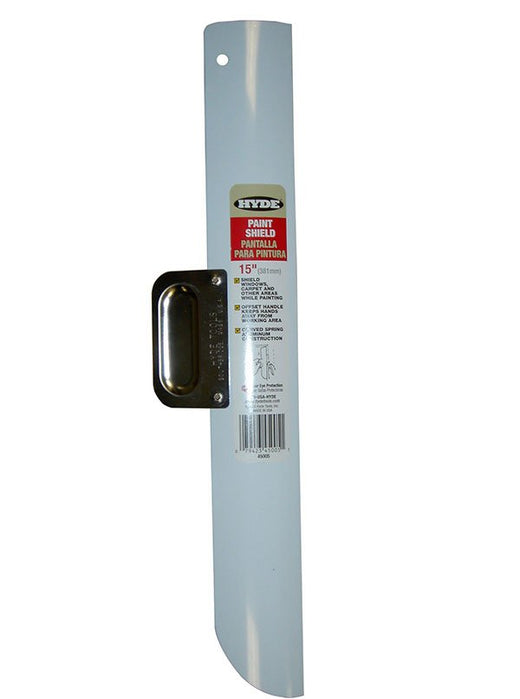

Use 45005, the 15-inch aluminum shield, as the ordinary run tool. Use 45000, the 10-inch member, above doors, at soffits, and where obstructions shorten the seat.

The offset handle keeps the holding hand above the blade plane and away from wet wall. The curved blade can follow modest irregularity, but it is not a texture gasket.

Select the stainless guide

Use 45810, the 24-1/2-inch Super Guide, on long true smooth junctions where a hard straight span seats fully. Use 45805, the 11-1/2-inch Mini Guide, for short returns and corner-dense geometry.

The supported family construction is a stainless steel blade extending beyond a high-impact styrene handle to reach into corners. The blade-past-handle design is especially useful at a die corner where an offset-handled shield can be obstructed.

Hyde’s official name “Stainless Steel Smoothing/Trim Tools” supports multi-trade identity; retailer copy expands the guide’s paint-shield/smoothing/straightedge uses. Keep the attribution boundary clear. Flatness, bevel, blade thickness, and surface tolerances remain unverified.

Decide shield or guide by the ceiling

Choose the curved aluminum shield when:

the junction has modest waviness;

brush-scale placements dominate;

direct hand comfort matters;

the run is interrupted.

Choose the stainless guide when:

the surface is true;

a longer hard fence reduces joints;

the blade end must reach into a corner;

the tool’s other smoothing/trim duties matter to the crew.

Choose neither when dry contact fails, the ceiling finish is too fragile, or access cannot keep both hands stable.

Prepare and protect

Follow the coating system for cleaning, repair, primer, temperature, and recoat. Older coatings may contain lead; perform regulated disturbance under the applicable process.

Protect floors, furniture, fixtures, trim, and openings. A hand shield catches the local brush or mini-roller edge, not drips or splatter from the room.

Stage access so the operator’s torso stays between rails or within the equipment’s designed stance. No shield is a balance aid. Reposition instead of leaning to finish the last inches.

Use lighting that reveals the junction without creating a coating ignition conflict.

Build a low-consequence witness

At a representative smooth section, seat the clean tool with its protected face against the ceiling. Tilt slightly toward the wall so liquid on the paint side tends away from the ceiling.

Load the brush moderately. Establish the wall’s top band with strokes controlled by the coating’s technique. Approach the edge without flooding it. If using a mini roller, keep the roller off the shield unless the witness proves controlled contact and film.

Lift directly away before a coating bridge develops.

ceiling for transfer;

wall for full coverage;

placement ends for gaps;

film for ridge or starvation;

ceiling finish for pressure/burnish marks;

blade for loading.

Approve a wipe interval no longer than observed conditions support. On a critical light ceiling, wiping every placement is prudent.

Set the room sequence

Plan access and wall order so the top band remains compatible with the later field rolling. Cut a manageable section and roll the field into it under the coating’s wet-edge requirements.

Do not shield-cut the entire building if those bands will dry beyond the specified working method. Coordinate boundary and field production.

Begin at a controllable corner and finish at an architectural break. Map tool changes before short returns.

Run a curved-shield placement

At stable access:

dry-seat 45005 or 45000;

confirm complete contact;

paint within the controlled span;

stop before the far blade end;

lift straight from the ceiling;

inspect and wipe;

overlap into the prior stop;

Never slide the wet blade along the junction. A dragged edge becomes a ceiling applicator.

Use only enough pressure to seat the curve. Over-flattening can rock or lift the ends.

Run a guide placement

Set 45810 or 45805 at the line with the stainless edge reaching into the intended corner where required. Keep the high-impact styrene handle clear of wet wall.

Because the guide is harder and longer, inspect the ceiling finish for contact marks. Use light pressure and a clean edge.

Paint the approved span, lift, wipe, and overlap. A long 24-1/2-inch guide collects more coating and needs more room to leave the surface without crossing completed work. Drop to the Mini before clearance or contact fails.

Start and finish die corners

Use the blade-past-handle feature of 45805 or 45810 where it can seat into the corner. Paint only as far as contact remains visible.

The last brush stroke still requires skill. A three-plane intersection can hold a bead; unload the brush before entering it. Stop and inspect rather than pushing paint into the corner because a guide is present.

For the next wall, remove, clean, and reorient the tool. Do not rotate a loaded blade through the ceiling corner.

Use access correctly

From a ladder, maintain the manufacturer’s stance and move it frequently. Keep brush, cutting pot, wipe, and shield arranged so nothing requires reaching across the body or climbing with occupied hands contrary to the access instructions.

From a platform or bench, confirm it is designed and permitted for that use. Keep floor protection from destabilizing feet.

On stairs or high rooms, select appropriate engineered access. This row does not include a pole-mounted tool. Do not improvise handle extensions.

Arrange the hands before climbing

The operator needs a stable plan for brush or mini roller, cutting pot, shield/guide, and wipe. Do not carry loose wet tools in a way that defeats the access equipment’s handhold requirements. Use approved hooks, platforms, or a ground handoff only where the equipment and site allow them; this catalog row supplies none.

At each move:

finish the placement and lift;

park or lower wet tools safely;

descend or reposition according to the access instructions;

re-establish floor protection and equipment stability;

bring up only the next clean configuration;

dry-seat before loading the brush near the ceiling.

Do not shuffle a ladder with paint and shield still in hand. Do not rest a guide across a ladder rail where it can fall. Establish an exclusion below overhead work.

For two-person support, the ground worker controls handoff and keeps people out of the drop zone; the person aloft controls when an item moves. A ground helper does not stabilize an improperly used ladder as a substitute for correct setup.

Fatigue shows first as changing blade pressure and brush load. Break or change method before the ceiling starts recording those changes.

Keep brush load compatible with overhead control

Load enough coating to form the boundary film but remove excess that can run down the blade. Work the brush into the top band away from the ceiling first, then finish the shielded edge with the controlled side of the bristles.

Do not scrape the brush repeatedly against the guide. That deposits a bead, changes bristle shape, and can drive coating behind the edge. The shield protects an occasional working contact; it is not the paint reservoir.

If a mini roller is used, unload it on the wall field before approaching the line. Roller end pressure against the guide can squeeze a ridge and cause spatter. Prove the roller diameter, frame clearance, and top-band film in the witness.

Keep the cutting pot below the ceiling finish and never balance it on a guide or ladder component unless the access system explicitly supports it. Wipe drips before moving the equipment.

At a doorway or soffit, finish the broad wall band before entering the short return. Tool changes performed overhead invite drops, contaminated handles, and mis-seated first strokes.

Keep the transition deliberate and visible.

Decide how to handle a textured interruption

Stop the shielded run on smooth surface before the texture begins. Lift, clean, and change to the qualified brush technique. Use the same color and maintain the coating wet edge without trying to force a hard straight line across deep relief.

At the far side, inspect the smooth junction anew before returning to the tool. The transition should follow the visual architecture, not hide behind a heavy paint ridge.

If the texture is asbestos-containing, lead-painted, fragile, or otherwise regulated, do not disturb it under this application. Follow the responsible hazard process.

Control the ceiling-side face

Paint can reach the protected face through fingers, a dirty wipe, a corner rotation, or a loaded edge. Keep separate clean wiping surfaces for the ceiling side.

Inspect before every seat on a high-contrast or delicate ceiling. A pinhead of color on the protected face can stamp repeatedly.

The source gives no universal immersion or solvent-care method. Clean through known coating/material guidance. Preserve fire controls for solvent or oil waste; oily rags can self-heat.

Integrate the wall field

After the top band, roll or brush the field into it under the coating’s lap and open-time instructions. Avoid a picture-frame effect caused by a heavy boundary band drying separately.

Keep the shield out of the wet field. Re-cut only through the coating’s repair method; repeated loaded passes at the ceiling can worsen the line.

Inspect sheen and film as well as geometry. A crisp line with a dark band below it is not complete.

Close and inspect

Keep room protection in place. Use normal and raking light to inspect ceiling transfer, placement joints, die corners, wall coverage, and film.

print on ceiling = loaded/contaminated edge;

leak at texture = contact failure;

dot at placement end = overlap/brush-span failure;

ridge on wall = excessive film;

ceiling pressure mark = finish/contact incompatibility.

Repair only under both finishes’ instructions.

What goes wrong (and the fix)

A ragged line follows texture valleys. The surface failed the smooth-junction gate. Route to skilled brush work.

A straight wall-color stripe appears on the ceiling. The shield printed. Stop, repair through the ceiling system, and clean every seat.

The long guide leaves a middle gap. The junction is not true over its span. Switch to Mini, curved shield, or brush.

Both curved-shield ends leak. Excess pressure is rocking the blade. Reduce load and shorten the painted span.

The ceiling finish becomes shiny under contact. It is being burnished or is insufficiently cured. Stop using contact protection.

The wall band is heavy. The operator is loading against the blade. Reduce brush/roller film and integrate the field.

The operator leans to avoid moving access. Stop and reposition. Tool speed cannot override access instructions.

Inside corners carry a blob. Unload the brush and finish the intersection as a small controlled detail.

A guide is described as an officially verified compound straightedge. Keep the full triple-duty wording at its retailer/inference attribution until Hyde wording is verified.

The history footnote

Painters cut ceiling boundaries with brushes and improvised straightedges before purpose-built hand shields. The stainless guides also inherit the paperhanger’s straightedge tradition. The record supports no inventor or exact date for the hand-shield method, so the useful history remains the convergence of those trades, not a manufactured claim.

Exact tools, verification, and backlink footer

Hand-shield length/material/construction and guide length/material/blade-past-handle construction are supported.
