How to Coat a Garage Floor with Epoxy — From Slab Acceptance to Return to Service

Job: install one identified, manufacturer-defined epoxy floor system over an accepted garage slab, preserving its specified preparation, film build, working windows, safety controls, and service restrictions.

Time: there is no universal schedule. Slab testing, contaminant removal, repairs, profile, drying, primer, coat sequence, recoat windows, cure, and return to foot or vehicle service all come from the current label, Technical Data Sheet (TDS), Safety Data Sheet (SDS), and written system instructions at the measured site conditions.

Difficulty: high consequence. Rolling is the visible part; diagnosis, preparation, batch control, sectioning, and knowing when to reject material decide whether the floor remains bonded.

Everything else: the complete matched coating system; current label/TDS/SDS for every component; the exact manufacturer-approved cleaner, repair, profile method, primer, aggregate, topcoat, applicators, mixing equipment, containers, environmental instruments, moisture test, film-control method, ventilation, ignition controls, PPE, spill provisions, cleanup, waste route, barriers, and lighting. A roller-cover page authorizes none of those items.

Let one exact system own the job

“Epoxy” names a broad chemistry class, not a garage-floor recipe. A kit may be a thin-film roll coat, a primer-and-base system, a broadcast floor, a squeegee-and-back-roll system, or one layer beneath a different topcoat. The roller may meter the coat, distribute material already gauged by another tool, or perform only a light back-roll. Do not transfer a ratio, component order, mix time, induction period, pot life, coverage, film thickness, applicator, temperature range, recoat window, thinner, cleaner, or cure schedule from another product.

Before buying tools, assemble one current document set and complete a control card:

| Control | Exact-system entry required before work |

| System identity | Manufacturer, complete product names, components, colors, lots, document revisions |

| Admitted slab | Concrete age/condition, old-coating rule, moisture test and limit, contamination test |

| Repairs and joints | Compatible repair products, static-crack method, moving-joint detail, readiness |

| Preparation | Required cleaning, removal method, concrete profile, dust-removal and acceptance tests |

| Environment | Air, slab, and material conditions; humidity/dew-point rule; vulnerable weather window |

| Safety | Ventilation, ignition/static controls, skin/eye/body protection, respiratory program if required |

| Tools | Mixer, vessels, placement tool, roller material/nap/width, frame, edge tool, film gauge |

| Batch | Full-kit or permitted split, ratio, order, mixing, transfer, induction, clock start, discard event |

| Placement | Coverage or film build, section size, wet-edge rule, broadcast/back-roll sequence |

| Recoat | Minimum, maximum, acceptance state, missed-window recovery |

| Service | Foot traffic, tires, equipment, chemicals, washdown, and full-service release |

| Closeout | Approved cleaner, spill route, residue and container disposition, local waste receiver |

Marketing copy, a neighboring product’s instructions, or “the usual garage epoxy method” cannot fill it.

Clear the garage safety boundary while every container is sealed

Read every component SDS together. Uncured epoxy components can create skin and respiratory hazards; some systems also introduce volatile or flammable constituents. OSHA directs employers to identify epoxy-resin hazards, evaluate exposure, provide appropriate ventilation, prevent eye and skin contact, and use respiratory protection when necessary (OSHA — epoxy-resin hazard controls). The exact SDS and site assessment—not the word *epoxy*—select glove material, eye/face protection, clothing, footwear, ventilation, and any respirator program.

Map the attached-house boundary: occupants, pets, food, stored goods, HVAC openings, doors to living space, drains, appliances, pilot lights, heaters, switches, motors, chargers, vehicles, and work that can create flame, heat, electrical, mechanical, or static sparks. If the SDS or fire plan identifies a flammable-vapor condition, ordinary fans and open doors are not automatic controls. OSHA’s flammable-liquids rule identifies multiple possible ignition sources but does not turn this guide into an equipment-classification plan (29 CFR 1910.106).

Stage first aid, spill response, communication, egress, and waste containment from the exact SDS and site plan. Maintain required controls through mixing, application, cleanup, and waste closure—not merely until the floor looks dry. If the controls cannot be maintained for the entire named window, reject the start.

Concrete grinding can create respirable crystalline silica. Use the required shroud, dust extraction or wet control, access restriction, and respiratory program for the actual task; an open garage door and an unqualified dust mask are not a silica plan (OSHA — crystalline silica in construction).

Accept or reject the slab

Read condition before cleaning

Map spalls, scaling, weak paste, laitance, hollow areas, old repairs, cracks, isolation and expansion joints, drains, tire paths, oil spots, sealers, curing compounds, adhesive, paint, wax, silicone tire dressing, and chemical attack. Probe questionable concrete. A new film bonded to a weak surface leaves with that surface.

Moving joints and static cracks are different. Do not fill or bridge a joint because the roller can cross it. Use the exact system detail for every joint and the compatible repair schedule for accepted cracks. Unresolved movement, continuing water entry, or a repair outside its overcoat state blocks coating.

Prove moisture by the required method

A slab can look and feel dry while transmitting moisture. Use the test method, locations, conditioning, limit, and interpretation required by the coating manufacturer. ASTM maintains an in-situ relative-humidity method and a calcium-chloride emission method for concrete floor slabs; they answer different questions and are not interchangeable by convenience. A handheld meter or taped sheet may help screen an area, but neither replaces the specified acceptance test.

Reject active dampness, hydrostatic pressure, recurring efflorescence, a failed required test, or an untested slab when the system requires a result. Do not install a non-breathing film to “seal the moisture in.”

Remove contamination rather than spreading it

Identify the contaminant and use only the system-approved cleaning sequence. Oil and silicone can migrate into concrete; one clean-looking wash is not proof of removal. Preserve dirty rinse or extraction material under the approved route, repeat the manufacturer’s acceptance test, and investigate contamination that returns.

Unknown sealer or curing compound is a bond question. A water-drop observation can reveal obvious beading, but it cannot identify chemistry or certify the floor. Obtain a removal and adhesion plan from the coating maker.

Treat an old coating as a separate substrate

Determine whether the new system admits the old film. Clean and prepare representative zones, then perform the required adhesion or compatibility test at tire paths, edges, doorways, repairs, and suspect spills. Peeling, blistering, softening, widespread release, or an incompatible unknown film is removal work, not a scuff-and-overcoat shortcut.

Create the specified profile

The TDS owns the required Concrete Surface Profile and the method capable of producing it. ICRI treats substrate condition, protective-system requirements, job conditions, preparation method, profile, and quality control as one selection problem (ICRI 310.2R). Etching is not universally sufficient; grinding is not universally required; a machine that polishes the paste has not prepared it.

After profiling, remove residue by the approved method and inspect the complete floor under raking light. Compare to the specified profile witness where required. Dust, loose abrasive, cleaner film, and repair debris are bond breakers. Record the accepted slab before coating hides the evidence.

Plan sections, batch geometry, exit, and the witness

Measure the actual coat area and subtract fixed exclusions. Use only the system’s coverage or film-build instruction to determine how much correctly mixed material serves each layer. Coverage is not a contest: stretching a batch farther can leave an underbuilt film even when the color looks closed.

Draw the floor. Mark edges, posts, drains, joints, doors, fixed equipment, cut-in zones, batch boundaries, and the dry-side exit. Divide the work into sections that the prepared crew can complete inside the exact working window. Put planned batch changes at joints, thresholds, or another system-approved break where possible. Keep the mixing station, unopened material, spill equipment, and waste on the dry side.

Dry-walk the route with every complete roller assembly. Confirm turns, loading access, frame clearance, and the operator’s retreat without stepping onto wet material. If the written system requires specialized walking equipment, use only its named equipment and procedure; this guide does not invent footwear or make it a default.

Prove a representative witness

The witness must reproduce the actual slab condition, profile, repairs, primer, components, mixing, placement tools, roller assembly, environment, coat sequence, and cure state. Carry it through the system’s required inspection and adhesion state. Approve it only when it meets the documented film, bond, appearance, texture, and defect criteria.

A witness proves that exact combination under those conditions. It does not waive a moisture failure elsewhere, authorize a different batch or roller, or turn a garage corner into proof for the whole field. Preserve the witness, readings, materials, times, observations, and acceptance decision as the job’s comparison standard.

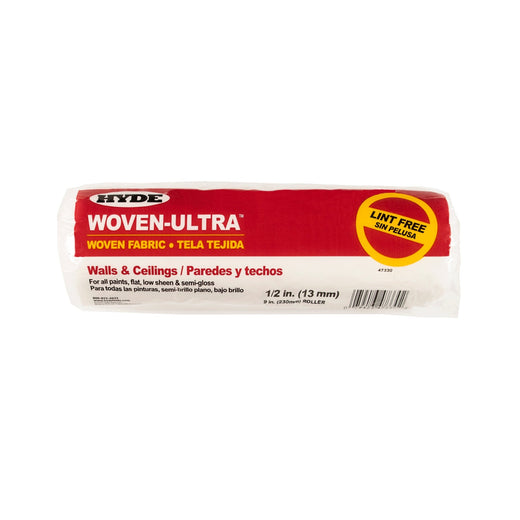

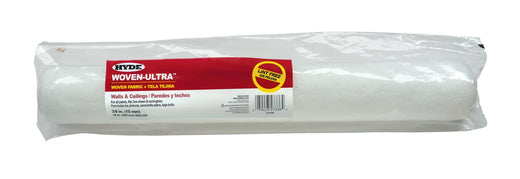

Admit the four registered roller leads honestly

The coating maker must approve the exact cover material, nap, width, and application role.

No registered cover becomes an edge brush, a mixing tool, or permission to replace a squeegee-placement method with direct rolling.

Inspect the admitted frame and cover dry. Reject damage, contamination, loose material, incomplete seating, binding, wobble, migration, or contact between frame and slab. Condition a new cover only as its own instructions and the coating system allow. Do not invent pre-wetting chemistry.

Mix and release each batch under one clock

Complete every site, tool, and substrate gate before components meet. Follow the exact component identities, ratio, full-kit or permitted partial-batch method, order, mixer, speed, duration, scrape/transfer step, induction, clock-start event, and discard event.

Label each batch and announce its release and rejection times. Never combine an expired batch with a fresh one, remix to restore spent pot life, add reducer by habit, or use apparent fluidity as acceptance. If the mix identity, ratio, sequence, clock, or condition is uncertain, quarantine the batch.

Release only the amount and by the placement method the TDS specifies. Some systems require prompt transfer out of the mixing mass; some meter material with a squeegee before rolling. Follow that choreography exactly.

Apply by section and read the wet film

Detail the section. Treat walls, curbs, posts, drains, joints, thresholds, and other boundaries with the approved detail method. Keep the edge band inside the system’s permitted joining state.

Place the batch as specified. Pour, ribbon, transfer, squeegee, gauge, or load from a tray only when the written system names that method. The roller does not decide where the material mass goes.

Bring the field into the edge. Work the planned section from the far side toward the exit. Maintain the system-defined wet connection to the preceding section. Use qualitative contact only: the admitted cover should turn freely and leave the witness-approved film. This guide specifies no pressure, direction, pass count, or loading fraction.

Respect the roller’s role. In direct-roll systems it may distribute and finish the coat. In squeegee-and-back-roll systems it follows the measured film and must not steal material from one section to feed another. In broadcast systems it may leave the field before aggregate placement. The TDS decides.

Read edges and laps immediately. Raking light reveals heavy shoulders, starved seams, ridges, dry joins, and material pooled beside joints. Correct only while the system permits wet correction and only by the approved method.

Read holidays and bubbles against the witness. Inspect from more than one direction. A holiday is an unclosed or underbuilt area, not merely a change in reflection. Bubbles, pinholes, foam, or craters require diagnosis: entrained air, slab outgassing, porosity, contamination, mix method, overworking, or another system cause. Do not keep rolling by reflex.

Close the batch deliberately. Record the actual area, conditions, film reading where required, defects, correction, batch break, and remaining clock.

Do not walk back into the film, throw aggregate, pop bubbles, add solvent, heat the floor, or make a late finishing pass unless the exact instructions admit that act at that state.

What goes wrong — diagnose before recovery

| Observation | Likely branch to investigate | Controlled response |

| Edge rope or heavy lap | uneven distribution, wrong landing, section overlap, changing workability | Correct only inside the permitted wet state; otherwise mark and use the specified cure/abrade/recoat repair |

| Holiday or thin patch | starvation, missed geometry, wrong roller role, roughness, lost wet edge | Verify film and system state; integrate only by the authorized wet method or recover at the stated recoat state |

| Bubbles, pinholes, foam | air in mixing/application, porous slab, outgassing, contamination, environmental drift | Stop repetitive rolling; compare with witness, find the source, and use only the system’s stated release or repair method |

| Fisheyes or craters | oil, silicone, cleaner, or incompatible residue | Stop the affected section. Do not flood it with more epoxy; follow the contamination/removal ruling |

| Fibers or cover debris | damaged, shedding, incompatible, or contaminated cover | Stop and replace only with an admitted assembly; remove debris only by a wet-film method the system permits |

| Old film lifts or wrinkles | incompatibility, solvent attack, poor old-film bond | Stop.

| Fresh film blisters or debonds | moisture, vapor drive, contamination, weak paste, or preparation failure | Preserve evidence and identify the failed interface. Another coat is not a repair |

| Batch thickens, strings, gels, heats, smokes, or changes unexpectedly | working-window loss or abnormal reaction | Stop use, isolate people, and execute the SDS emergency/disposition route; never thin or cap a reacting mass |

Do not bridge it again by rolling |

| Recoat window missed | scheduling, environment, or cure-state error | Use the exact missed-window preparation and adhesion route; do not “coat quickly before it gets worse” |

| Soft, tacky, cloudy, uneven, or off-color cure | ratio/mix, environment, moisture, contamination, film, or chemistry issue | Quarantine from service, preserve batch and condition records, and obtain the system maker’s diagnosis |

Repair decisions belong to the complete plane, not the smallest visible spot. A local patch can create its own bond edge, gloss change, or lap. Where the system requires boundary-to-boundary recoating, do not disguise a spot repair as completion.

Recoat, cure, and return to service

Inspect every coat at the state and by the method its instructions require. Verify adhesion, film, coverage, defects, joints, edges, and contamination before another layer hides them. If abrasion, cleaning, or primer is required between coats, execute the exact sequence and remove its residue.

Minimum and maximum recoat windows both matter. Too early can disturb the film; too late can lose intercoat bond.

Keep barriers and environmental controls in place through the named cure and reoccupancy states. “Dry to touch” does not release the floor to people, storage, tires, jacks, hot tires, wash water, deicing salts, fuel, chemicals, or abrasion. Record each permitted service state separately and release only what the current system documents.

Cleanup and waste are part of the epoxy job

Use only the cleaner and timing named for the exact coating and wetted tools. A solvent named for cleanup is not an approved thinner. If the cover, liner, tray, mixer, or vessel lacks a compatible cleaning method, contain it and obtain direction rather than inventing a wash or scrape-out procedure.

Keep ventilation, ignition, PPE, and access controls active during cleanup. Separate untouched components, mixed residue, cleaner, wash liquid, rags, absorbents, disposable tools, PPE, and empty containers according to their actual classification. Do not combine components merely to “make them safe,” close a container around a reacting mass, or send residue to a drain, ground, or storm sewer.

EPA treats paints and solvents as possible household hazardous waste and directs households to product-label and local-program instructions; commercial generators make the applicable waste determination (EPA — Household Hazardous Waste). Preserve the accepted receiver or disposal instruction in the closeout record.

Frequently asked questions

Do I etch or grind the garage floor?

Use the preparation method that produces the exact system’s required profile on the actual slab. Neither method is universal, and a visual “rough enough” judgment is not a profile specification.

Which of the four rollers should I buy?

Start with the coating maker’s approved cover material, nap, width, and role. Of this row’s products, 47328 carries the strongest exact Hyde evidence because its listed Woven-Ultra family claim includes high-gloss epoxies. The other three remain conditional at the distinct evidence levels in the table. A witness still controls the admitted full assembly.

Can I coat over old garage-floor paint?

Only when the new system admits that chemistry and the old film passes its required cleaning, preparation, compatibility, and adhesion tests across representative zones. A new epoxy cannot improve the bond of a failing old coat.

How dry does the slab need to be?

Dry enough to pass the exact system’s named moisture test and limit. Appearance, elapsed weather, a handheld screening meter, or a taped-sheet observation cannot replace that requirement.

How much epoxy, how many coats, and how long before parking?

Those are exact-product facts. Use the current coverage or film-build instruction, required system layers, actual measured area, environmental conditions, and separate return-to-service states. This guide supplies no universal number.

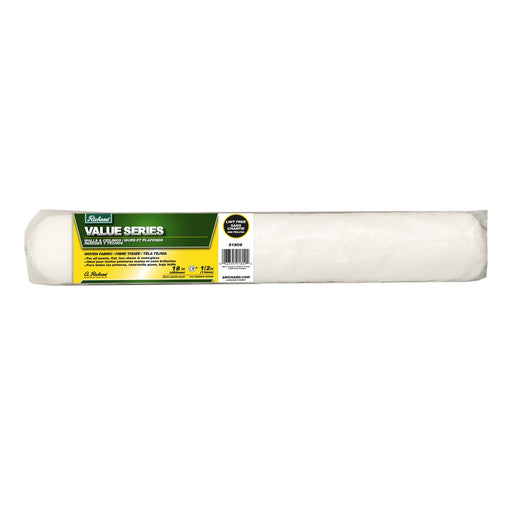

Should I use the 18-inch cover to finish faster?

Only if the system approves that exact cover, the field is open enough, the complete frame/load system is proven, the crew can keep the planned sections inside the working window, and the witness passes. Width can reduce passes while making handling and timing harder.

What do I do when bubbles appear?

Stop and identify whether the cause is mixing, placement, slab porosity/outgassing, contamination, environment, or changing material. Use only the exact system’s permitted bubble-release or repair method at the actual film state.

Can I save leftover mixed epoxy?

Only if the exact manufacturer instructions describe an allowed disposition. Do not return it to unmixed components, combine it with a fresh batch, cap a reacting mass, or assume that remaining liquid means remaining pot life.

History footnote

Modern epoxy resin emerged from parallel work in Europe and the United States in the late 1930s and early 1940s. ASM International credits Pierre Castan and S. Greenlee with investigating bisphenol-A/epichlorohydrin resin systems that first found use as casting compounds and coatings (ASM Handbook — Epoxy Resins and Curatives). Castan’s U.S. patent records a 1938 priority for a process of preparing synthetic resins ([U.S. 2,324,483]( Greenlee’s later epoxide-resin patent documents the American branch ([U.S. 2,582,985]( The garage-floor kit is a domestic descendant of industrial coating chemistry. Its convenience did not erase the chemistry’s demand for exact proportion, preparation, and working control.

Open-claim flag count: 12. Exact coating/system identity; slab moisture method/limit; contamination and old-coating disposition; crack/joint repair system; required profile/preparation; ventilation and ignition plan; PPE and any footwear; mix/induction/pot-life controls; coverage/film/recoat/service schedule; exact roller/frame/coating compatibility; 47330/47336 exact epoxy applicability; and 91808 exact epoxy/material/core-fit applicability remain system or production inputs.
