How to Choose Paper vs. Mesh Drywall Tape

The empty union is intentional and remains visible.

The short answer: for a conventional interior drywall system, paper is the conservative general-purpose route for strong flat joints and the ordinary route for inside corners. Self-adhesive fiberglass mesh is a different installation system that can remove the wet bedding step on eligible flat joints and repairs, but it must be paired with the setting-type compound and method required by the tape and compound makers. That is a useful default, not a declaration that one material is universally superior. Proprietary fiberglass, composite, paper-faced, veneer-plaster, abuse-resistant, exterior, wet-area, acoustic, smoke, and fire-resistance-rated systems can specify a different answer.

Time: the decision takes minutes when the wall system, joint, tape, and compound are identified. Application and return-to-coat time belong to the chosen compound and environmental conditions; this guide supplies no universal working, setting, drying, recoating, sanding, or decoration clock.

Difficulty: selection is harder than application. Both tapes can be made to look neat while wet. The real test is whether the chosen reinforcement, compound chemistry, joint geometry, support, assembly listing, and workmanship form one permitted system.

What this guide does not decide: board type or thickness; layer count; framing; fastener schedule; control-joint placement; firestop or sealant; repair backing; wet-area substrate; finish level; primer; texture; or paint. Tape is one component in a wall, not a substitute for the wall design.

First principle: do not buy tape until you can name the assembly

“Drywall” is not enough information. Before choosing paper or mesh, answer these questions in order.

Is this ordinary non-rated interior board, or a specified assembly?

Find the drawing, specification, tested design, manufacturer system, repair instruction, or at minimum the product labels for the board already installed. Stop the generic paper-versus-mesh decision if the wall or ceiling is any of the following:

fire-resistance-rated, smoke-rated, acoustical, shaftwall, area-separation, chase, or corridor construction;

a multi-layer membrane whose joints must be staggered;

impact-, abuse-, mold-, moisture-, or fire-resistant proprietary panel construction;

veneer plaster, tile backing, exterior gypsum, or another surface that only resembles ordinary drywall;

a control joint, expansion joint, head-of-wall joint, perimeter joint, penetration, or opening that requires movement or fire/smoke treatment rather than joint tape;

a repair whose original assembly cannot be identified.

The reason is not paperwork theater. UL explains that a fire-resistance rating belongs to the complete constructed assembly, not to an isolated board, tape, or compound. A design may name paper tape, may permit a particular fiberglass-and-setting-compound system, may call for another treatment, or may omit treatment at a particular concealed layer. Choosing by aisle folklore can change a tested construction detail even when the finished surface looks perfect. See UL Solutions on critical components in fire-resistance-rated designs.

What joint are you actually treating?

Name the geometry before the material:

Factory-tapered flat joint: two recessed long edges create room for tape and compound. This is the most forgiving geometry for either a permitted paper system or a permitted fiberglass system.

Butt or field-cut joint: two unrecessed ends meet. Tape cannot erase the added thickness; finish coats must spread a shallow crown far enough that raking light no longer reads it.

Patch perimeter: mechanically supported field-cut edges form four butt joints, often with stress concentrated at the corners.

Inside corner: two planes meet in a concave angle. Standard paper tape has a center crease made for this geometry. Ordinary self-adhesive flat mesh does not become corner tape merely because it can be folded by force.

Outside corner: this usually belongs to a specified bead or reinforced corner system, not to a casual paper-versus-flat-mesh choice.

Recurring crack: the visible line may be evidence of movement, missing support, moisture, or a misplaced control joint. It is not automatically a tape-selection problem.

Control or movement joint: neither paper nor mesh should bridge a joint intended to move. Use the specified control-joint assembly.

Is the board stable, supported, dry, and in one plane?

Press lightly on each side of the joint while watching under raking light. If one edge clicks, pumps, moves independently, or changes plane, stop. Restore backing and fastening under the applicable board or repair method. If both sides move, inspect the framing or assembly. If the paper face is loose, swollen, mold-damaged, charred, delaminated, or stained by active moisture, repair to sound material first.

Tape reinforces compound across a stable discontinuity. It does not supply missing framing, replace gypsum core, stop a leak, restrain a moving building joint, or convert rotten face paper into a sound membrane. Choosing “stronger tape” for active movement is like choosing a stronger paint for a loose hinge.

What compound is permitted for the tape and the job?

Do not treat “joint compound” as one interchangeable pail.

Drying-type compound hardens as water leaves. Products within this class can be formulated for taping, topping, all-purpose use, lightweight work, or a manufacturer-specific role. A label that permits embedding paper does not automatically approve a self-adhesive fiberglass first coat.

Setting-type compound hardens through a chemical set after mixing. It still has manufacturer-controlled water, working, application, set, dry, recoat, sanding, and decoration requirements. “Setting” does not mean that every later operation is safe the instant the material becomes hard.

Proprietary compounds and plasters may be required with a particular fiberglass, composite, paper, veneer, or repair system.

The compound decision and tape decision are one decision. If the chosen mesh requires setting-type compound and the only material on site is a ready-mixed drying product not approved for that tape, you do not have a mesh system yet.

The two systems — same purpose, different load path

Paper and self-adhesive fiberglass mesh both reinforce a treated joint, but they get there by different mechanics. The distinction matters more than the color of the roll.

Paper: compound below first, tape second

Paper tape is embedded into a continuous wet bedding coat. The compound beneath wets and bonds the tape to both board faces; the knife expels air and excess while deliberately leaving an uninterrupted bond film below. Later coats cover and feather the joint.

The paper route succeeds when:

the substrate is sound and prepared;

the bedding compound is approved for the tape and remains workable;

the bed has no dry skips;

the tape is placed without wrinkles or stretch;

the wipe removes excess without scraping the tape dry;

bubbles are lifted and rebedded while the coat is still workable;

subsequent coats wait for the state required by the compound maker.

Its characteristic failure is loss of bond beneath the tape: bubbles, dry edges, wrinkles, or long loose runs caused by dust, a starved bed, skinned compound, or trapped air. Paper can look flat during the wipe and still fail if the bond line was removed in pursuit of a tight-looking coat.

Paper's positive center crease also gives it an ordinary inside-corner role. It can be folded sharply, centered on the angle, embedded on both wings, and kept as a defined line while each wall is later coated. That geometry is one reason a general flat-mesh product is not a like-for-like corner substitute.

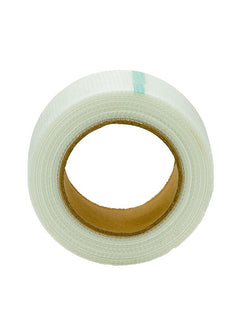

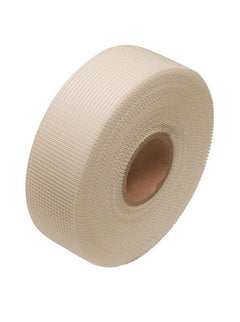

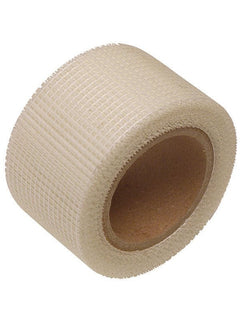

Self-adhesive fiberglass mesh: tape first, compound through it

Ordinary self-adhesive mesh is pressed directly onto clean, dry board. There is no wet bedding coat beneath the adhesive. The permitted setting-type compound is then forced through the open weave so the material fills the joint below and fully buries the reinforcement.

The mesh route succeeds when:

the joint is an eligible flat joint or repair under the system;

the board is clean, dry, sound, and free of dust that would defeat the pressure-sensitive adhesive;

the tape is centered, firmly seated, and free of stretch or slack;

the first compound is exactly the class required by the tape maker;

the pressure pass drives compound through the full weave and into the joint;

the mesh is covered without leaving a bright, hollow tunnel;

the material is not overworked after it begins to set;

later coats follow the approved tape/compound schedule.

Its characteristic failure is an incomplete or mismatched first coat: mesh stuck to dusty board, a curled edge buried rather than replaced, drying-type compound used where setting-type was required, or compound skimmed over the top without filling through the weave. A neat frosting over a hollow mesh bridge is not a finished joint.

The self-adhesive route can be faster because layout happens before mixing and the separate wet bedding operation disappears. That speed belongs to eligible flat work with the correct setting compound; it does not erase mixing discipline, set-window pressure, cleanup, broad finish coats, or diagnosis.

What manufacturer testing does — and does not — prove

USG's joint-tape paper reports that, in its testing, paper-reinforced joints outperformed fiberglass in compression and shear, while fiberglass with setting compound showed a narrow advantage under expansion loading. USG therefore recommends paper for broad crack resistance and requires setting-type compound if fiberglass is chosen. It also identifies fiberglass-plus-setting compound as useful for industrialized flat-joint production while retaining paper for corners and wall/ceiling intersections.

That is strong selection evidence, but it is not a universal leaderboard for every tape sold by every manufacturer. It does not transfer USG proprietary cross-fiber, composite, or coat-schedule claims to Hyde mesh. It does not prove that any paper tape works with any compound. It does not allow a generic guide to rewrite a listed assembly.

Selection by joint and work class

New factory-tapered flat joints

For ordinary interior work with no contrary project requirement, paper is the conservative default. It is thin, is embedded as part of the tape coat, and has the broad conventional joint-strength role documented by its manufacturer. Use the paper and compound as one approved system.

Self-adhesive mesh can be a legitimate flat-joint system when its manufacturer permits new-work flats and requires or approves the setting compound you will use. It can be attractive where fast staging matters and the crew is already equipped to mix, apply, and clean within a setting compound's working window.

Do not decide from the tape alone. On a room of new board, the production choice affects mixing, pan discipline, coat sequencing, crew pace, waste, sanding, and every corner. A one-roll comparison at the store is not a whole-room system comparison.

Butt joints and field-cut seams

Either tape route, when permitted, adds thickness on a surface with no factory recess. The decisive craft problem becomes the crown: enough compound must remain over the reinforcement, and later coats must feather far enough onto flat board to distribute the rise.

Paper remains the conservative general choice. Mesh may be used where its system expressly permits the joint and the correct setting compound is forced through it. Neither choice rescues edges that are misaligned, unsupported, crushed, or gapped beyond the permitted prefill or repair method. Plane and support come before reinforcement; broad knives and raking-light inspection come after it.

Inside corners and wall/ceiling intersections

Fold on the center crease, bed both faces, place the line straight, and embed without starving either wing.

Do not substitute ordinary flat self-adhesive mesh merely because it can be bent. It does not carry the same purpose-made crease behavior, and a springy fold that opens while the compound sets is not a corner system.

If the intersection is part of a deflection, perimeter, fire, smoke, acoustic, or movement detail, stop. A folded tape-and-compound corner may not be the detail at all.

Small supported patches

A patch perimeter is four field-cut butt joints. First prove that the replacement board is mechanically supported and fastened, that the core and face are sound, and that the patch sits in plane.

Choose paper when broad crack resistance leads, when the repair system calls for it, when inside-corner geometry is involved, or when the approved compound system makes paper the cleanest compatible route.

Choose self-adhesive mesh when the patch is an eligible flat repair, the board is clean and dry, the exact mesh is approved, and a compatible setting-type compound is available and understood.

At corners of a rectangular patch, do not stack tape casually into a high four-layer knot. Follow the tape or repair-system intersection detail. After reinforcement, widen the finish enough to hide the field-cut crown rather than sanding surrounding face paper down to the patch.

A short crack in an existing wall

First open the diagnosis, not the tape roll. A crack that has returned through earlier tape, runs from a door or window corner, follows a sagging ceiling, opens seasonally, tracks a control joint, or moves under hand pressure is evidence of an assembly problem. Correct movement, backing, fastening, moisture, or the missing control detail before surface treatment.

For a one-time, stable, prepared repair, paper generally leads when maximum conventional crack resistance matters. Mesh can be useful for an eligible flat repair with its required setting compound. Neither material is “flexible enough” to legitimize a moving crack. Fiberglass's expansion behavior in one test mode is not permission to bridge live building movement.

Plaster, old repairs, and mixed substrates

Do not assume a drywall tape label covers plaster, painted plaster, masonry, cement board, wood movement, or a gypsum-to-dissimilar-material transition. Confirm the repair system's substrate list, preparation, primer or bonding requirements, compound or plaster, and reinforcement.

Old patched surfaces also raise a disturbance question. Legacy paint, texture, joint compound, patching compound, or plaster may require lead-safe or asbestos-controlled assessment before cutting, scraping, or sanding. Tape selection does not answer material hazard. Preserve the test/containment boundary and then return to the specified repair.

Water-damaged areas

No tape is a moisture repair. Find and stop the leak; inspect the cavity; remove swollen, soft, mold-damaged, delaminated, or crumbling material to sound boundaries; restore insulation and rated components where present; dry the assembly; then use the prescribed patch and joint treatment.

A damp board face is especially hostile to self-adhesive mesh, but that does not make paper a wet-wall solution. Paper also depends on a sound substrate and controlled compound drying. “Paper for damp, mesh for dry” is a false rule. Dry and sound comes before either.

Fire-resistance-rated, smoke, and other life-safety assemblies

There is no generic paper-versus-mesh answer here.

Identify the exact tested/listed design and which layer is damaged or being finished.

Read its component and joint-treatment language, including board type, thickness, orientation, layers, framing, fasteners, stagger, insulation, sealants, penetrations, and finish.

Restore the full membrane and any cavity component; do not treat a cosmetic surface patch as a rating repair.

Do not substitute based on this guide.

The Gypsum Association's accessible repair guidance says a rated system must be restored to its original fire-resistive condition; larger damage can require removal back to framing, unsupported patch edges require mechanical support, layers may need their original joint staggering, and patch material must match the required gypsum type and thickness before tape and compound restore the surface. See GA-225, *Repair of Fire-Rated Gypsum Panel Product Systems*.

The practical rule is strict: a roll of tape has no hourly rating by itself. A paper-tape product page, a fiberglass-tape strength claim, or a repair that “looks like the old wall” cannot certify the assembly.

Paper with drying-type compound

This is a familiar conventional system when the specific paper and compound makers approve the pairing. The compound must be suitable for embedding, not merely for a later topping coat. Lay a continuous bed, embed before skinning, leave a bond film, allow complete drying as directed, and widen later coats under the approved schedule.

Do not infer a water ratio, bed thickness, coat width, minimum temperature, drying time, sanding grit, or primer from another brand's submittal. Those are product/system facts. The technique—continuous bond below, bubble-free wipe, wider later coats—is trade knowledge; the numbers remain label-controlled.

Paper with setting-type compound

Paper can be paired with setting-type compound when the products and assembly permit it. This can be useful for repair sequencing, deep prefill under a permitted system, difficult drying conditions, or scheduled return visits. It also puts the embed inside a finite working window.

Mix only the quantity that can be bedded and wiped before the product changes state. Do not add water to revive material that has begun setting. Do not confuse hard set with full dry readiness for sanding, priming, or decoration.

Mesh with setting-type compound

Hyde's accepted white-mesh family claim specifically calls for quick-setting compound. Press the tape to clean, dry board, then force the setting compound through the mesh and into the joint below.

The first coat must do more than hide the grid from a standing viewer. Inspect close under cross light: the weave should be filled, the joint beneath should not read as a hollow channel, edges should remain adhered, and the material should be worked before—not through—its set.

Mesh with drying-type compound

Do not use this pairing merely because both products say “drywall.” USG's testing found fiberglass joints with drying compound significantly weaker than paper/drying-compound joints in multiple load modes, and Hyde's white mesh specifies quick-setting compound.

Proprietary exceptions

Use them as complete systems. Never extract the convenient sentence—“no bedding coat,” “two coats,” “stronger,” “fire rated,” “works over plaster”—and apply it to a different roll.

The embedding distinction — run the right hand test

The cleanest way to remember the systems is to ask where the compound must be before the first pressure pass.

Paper hand test: is there a continuous bond film below?

Butter a continuous bedding coat slightly wider than the tape.

Lay the paper centered and relaxed before the bed skins.

Wipe from the middle toward each end with firm, even pressure.

Read the squeeze-out and tape face.

Lift a practice end while wet: compound should contact the full underside, with no dry stripe or dust island.

Re-bed any bubble immediately.

A paper joint fails when the wipe pursues thinness so aggressively that it removes the bond it was supposed to form.

Mesh hand test: did compound pass through the entire weave?

Apply the self-adhesive mesh directly to clean, dry board.

Seat the full run without stretching it.

Load approved setting compound over the mesh.

Make a deliberate pressure pass that drives material through the openings.

Inspect the weave and the joint channel from both directions under close light.

Stop working when the material begins to set; use a fresh batch for the next operation.

A mesh joint fails when the coat pursues a smooth top while leaving an unfilled tunnel under the reinforcement.

These tests are opposites. Putting paper dry on the wall and coating only its face eliminates its bond. Floating self-adhesive mesh in a wet bed as though it were paper abandons its direct-to-board installation method. The materials may look similar after two finish coats; the hidden first operation is what makes them different systems.

Build a representative mockup before committing the room

A mockup is especially valuable when the crew is changing tape, compound, board, environment, finish, or application method. It is a workmanship and compatibility check, not a laboratory strength test or a substitute for a rated design.

Mockup materials

representative board and joint geometry;

the actual paper and/or mesh under consideration;

the exact compound products and clean mixing equipment;

the intended embedding and finish tools;

the actual primer and representative finish where appearance matters;

the expected temperature, humidity, ventilation, and lighting as closely as practical.

Do not build the mockup on a random scrap of unknown board with leftover compound and then treat success as approval for a proprietary wall.

Side-by-side flat-joint mockup

On one stable, supported practice panel, make two comparable flat joints:

Prepare both equally.

Embed paper in its approved bedding compound on one.

Apply mesh directly and force its approved setting compound through on the other.

Follow each system's own recoat schedule; do not “equalize” the products by giving both the same unapproved method.

Finish each to the same visual target.

Prime both with the specified primer.

Inspect under raking light from both directions and normal room light.

Record what can be observed honestly:

paper bed open time and bubble control;

mesh adhesion, seating, fill-through, and working-window control;

ridge height and the width required to hide the crown;

drag, tearing, pinholes, shrinkage, and sanding behavior;

primer flashing and final texture;

crew repeatability and cleanup.

Do not claim the mockup proves ultimate joint strength, decades of crack resistance, fire rating, smoke performance, acoustic performance, code compliance, or equivalence to a tested assembly.

Corner mockup

If inside corners are in scope, build one with the actual pre-creased paper and compound.

the crease stays centered and straight;

both wings carry continuous bedding compound;

the embed does not starve the apex or edges;

later coats can be worked without lifting or sanding through the tape.

Do not waste the corner mockup trying to make ordinary flat mesh imitate a creased product. The experiment answers the wrong question.

Repair mockup

For patch work, reproduce the real edge: supported field-cut board, the actual gap, and the intended finish light. A factory taper mockup can make any system look easier than the butt-joint patch it is supposed to predict.

Buyer tests — make the decision at the counter without making up a specification

Test 1: “I am finishing ordinary new flat joints and inside corners”

Choose an approved paper-tape plus embedding-compound system unless the project documents or full manufacturer system say otherwise. Paper serves both the flats and the ordinary corners. Buy compound formulated and labeled for the embedding step, not just topping material. If the job includes a rated or proprietary assembly, return to its design before buying.

Test 2: “I have one small, stable flat patch and want the self-stick route”

Choose a self-adhesive fiberglass mesh that is approved for the substrate and repair, plus the exact setting-type compound its maker requires. The board must be supported, clean, dry, and in plane. Do not buy mesh if you plan to put a generic air-dry ready-mix over it merely because that is already open.

Test 3: “I only own ready-mixed drying compound”

That fact does not make paper universally mandatory, but it removes ordinary Hyde self-adhesive mesh from the ready-to-use system because Hyde specifies quick-setting compound. Choose paper only if the exact ready-mix is approved for paper embedding and the joint, or obtain the compatible setting compound required for the selected mesh.

Test 4: “The crack came back after the last repair”

Buy neither yet. Press-test the board, locate support and fasteners, investigate framing movement, moisture, control-joint needs, and prior tape/compound mismatch. A second roll hides the diagnosis. Once the cause is corrected, the applicable repair system decides the reinforcement.

Test 5: “I am patching a fire-rated corridor wall”

Buy nothing from a generic comparison. Restore the complete assembly. No tape package can supply the missing rating.

Test 6: “I want the strongest tape”

Replace the question with four questions:

Strongest under which movement mode and test system?

Compatible with which compound?

Installed on which joint geometry?

For broad conventional flat-joint crack resistance and corners, paper is the conservative answer supported by USG's testing. For an eligible flat speed system using setting compound, mesh can be the working answer. For a proprietary or rated assembly, “strongest” means “the specified complete system,” not a free-standing tape property.

Test 7: “I am doing many identical flat joints in controlled production”

Evaluate the complete workflow. USG identifies fiberglass plus setting compound as a production-speed option for industrialized flat joints, while still recommending paper at corners and intersections. Do not turn a factory-production recommendation into a blanket residential retrofit rule.

Test 8: “Can I use mesh in the corner if I fold it first?”

Not ordinary flat self-adhesive mesh. Choose pre-creased paper or the exact proprietary corner reinforcement permitted by the system. A hand-made crease that tries to reopen under wet compound is not equivalent to a designed corner product.

Test 9: “The patch is damp but paper does not need adhesive”

Stop and dry or replace the damaged assembly. Paper still needs a sound substrate and controlled compound bond/drying. Mesh's pressure-sensitive adhesive makes dampness visibly incompatible, but paper does not turn moisture into an acceptable starting condition.

Test 10: “The paper joint bubbled once, so mesh must be better”

Diagnose the paper embed: dry skip, dusty board, compound skinned before placement, trapped air, or an over-tight wipe. Mesh changes the process and its failure modes; it does not retroactively prove the material caused poor bedding. If the joint class and workflow still favor paper, fix the embed. If the job legitimately favors mesh and setting compound, change the whole system.

Failure atlas — what went wrong, what to do, and what not to blame

Paper bubbles while wet

Likely causes: a dry bedding skip, dust, compound skinning, trapped air, a wrinkle, or a wipe that starved the bond.

Response: lift back to attached tape while the material is workable, add fresh permitted compound, relay, and wipe. Remove and restart if the tape tears or the bed has changed state.

Do not: coat over the bubble. A buried void remains a void.

Paper bubbles after drying

Likely causes: the same hidden bond failures, now cured into place.

Paper wrinkles, fishtails, or drifts off center

Likely causes: the tape was stretched, the run was too long for the available open time, the bed was too heavy, the knife pushed only from one end, or the corner crease was not parked straight.

Response: correct while wet; shorten the working run; place relaxed; wipe from the middle toward the ends.

Do not: bury a folded ridge under progressively thicker compound.

Paper edge is visible or lifts during sanding

Likely causes: insufficient coverage, oversanding, or an already weak embed.

Response: stop abrasion. If bonded, add the approved finish coat. If loose, remove and re-bed the failed area.

Do not: use finer grit as if it can restore reinforcement already exposed or cut.

Mesh will not stick or an edge curls

Response: remove the run, clean and dry the surface, and apply fresh tape under the maker's conditions.

Do not: bury a loose edge and hope the top coat becomes the missing pressure-sensitive bond.

Mesh remains bright or the grid telegraphs

Likely causes: compound was skimmed over rather than driven through, the first coat was too lean, or sanding reached the reinforcement.

Protect exposed glass fibers and follow the compound/tape repair directions.

Do not: sand the mesh texture away.

Mesh joint cracks despite a smooth finish

Likely causes: drying-type compound used where setting compound was required; incomplete fill beneath the weave; slack tape; unsupported board; live movement; or an unapproved product pairing.

Response: diagnose support and movement first, then inspect the first-coat system.

Do not: infer that a longer roll, thicker finish coat, or second layer of mesh supplies strength.

Setting compound tears or balls under the knife

Likely causes: the batch is leaving its working window, the mix is wrong, tools carry set crumbs, or late passes are trying to polish material already changing state.

Response: stop, clean tools, discard material as directed, and mix a fresh compliant batch.

Do not: add water to “bring it back.”

The joint returns as a ridge or rectangle under side light

Likely causes: a butt/patch crown was finished too narrowly, the center was overfilled, blade corners printed hard edges, or the board started out of plane.

Response: read the plane with raking light and a straightedge; scrape isolated dry nibs if permitted; add a wider, thinner coat with the correct finishing tool.

Do not: keep sanding the center until tape or face paper appears.

The same crack returns through either tape

Likely causes: assembly movement, missing support, framing deflection, moisture, misplaced joint, control-joint need, incompatible transition, or uncorrected damage.

Response: stop cosmetic work and correct the cause.

Do not: use the recurrence as proof that the other tape is universally stronger.

A rated repair looks finished but its construction is unknown

Likely cause: appearance was treated as evidence of fire/smoke/acoustic restoration.

Do not: certify or market the patch from a tape label or surface photograph.

What this guide refuses

It does not call paper universally superior.

It does not call mesh universally faster without naming the setting-compound workflow.

It does not claim a tape alone is structural, fire-rated, waterproof, mold-proof, acoustic, or movement-rated.

It does not transfer a proprietary fiberglass schedule to Hyde mesh.

It does not transfer one paper-tape submittal's dimensions or timing to all paper.

It does not invent tape thickness, tensile strength, roll coverage, compound ratio, coat thickness, working time, set time, drying time, recoat time, sanding grit, finish level, or price.

It does not treat a mockup as a fire test or a short-term appearance check as long-term crack proof.

It does not tape over unsupported board, active water damage, movement joints, or an unidentified life-safety assembly.

History — the seam arrived with the factory-made wall

The paper-versus-mesh argument could not exist until walls arrived in panels. Augustine Sackett's [U.S. Patent 520,123]( issued in 1894, described a rigid interior covering made from alternating plaster and paper layers. The factory-made panel accelerated wall construction but created a repeated site problem that lath-and-plaster did not present in the same way: every board edge advertised where one factory unit ended and another began.

The first joint reinforcements were not today's familiar paper roll. USG's historical account in its joint-tape paper says the company introduced perforated metal joint tape in 1929 as a replacement for open-weave cloth, then introduced paper joint tape in 1939. Those are defensible USG milestones, not a claim that USG invented every form of joint reinforcement or that no paper strip appeared elsewhere earlier.

Paper tape made the modern drywall sequence legible: lay compound, embed reinforcement, cover, then widen successive coats until many panels read as one plane. Its cross-fiber paper and center crease developed around the two jobs the trade still asks of it—reinforce flats and define inside angles. Modern USG paper tape is marketed for joint and inside-corner reinforcement and is represented as meeting ASTM C475; that product claim belongs to the named USG tape, not to unverified paper by resemblance. See USG Sheetrock® Brand Paper Joint Tape.

Self-adhesive fiberglass mesh arrived later and inverted the first operation. Instead of wet compound receiving the tape, a pressure-sensitive glass grid first grabs dry board and a setting compound passes through it. The development answered real production and repair pressures: faster layout, no separate wet bedding pass, and reinforcement that could be placed before the finite-life batch was mixed. Do not manufacture a tidy birthday because the material feels modern.

The two systems therefore preserve two different workshop logics. Paper belongs to the older embed-and-bond sequence; self-adhesive mesh belongs to place-first, fill-through production. Repair crews still value fast flat layout. Rated assemblies still answer to their tests. And every successful joint still depends more on stable board, compatible compound, full embed/fill, patient drying or setting, and a broad finish than on the rhetoric printed across the front of the roll.

Its numerical application schedule is not generalized here.

USG — Sheetrock® Brand Fiberglass Joint Tape: named fiberglass product's setting-compound first-coat requirement and flat repair role. Its proprietary claims are not transferred to Hyde.

Gypsum Association GA-216-2010: accessible application/finishing anchor for paper bedding, self-adhering mesh preparation/fill-through, and setting-versus-drying method.

UL Solutions — critical components in fire-resistance-rated designs: ratings belong to complete assemblies and each specified component/construction detail matters.

[U.S. Patent 520,123]( Sackett wallboard history anchor.

Current-edition check: the accessible GA-216-2010 and GA-225-08 documents are method anchors.

No generic fire-rating claim: neither paper nor mesh carries an hourly rating here. Every rated construction and repair must bind to its complete tested/listed design and permitted repair method.

No proprietary transfer: USG paper, fiberglass, cross-fiber, compound, coat, strength, and application claims remain USG-system evidence. Hyde mesh gets only Hyde-supported claims.

No universal mesh chronology: no defensible single inventor or introduction date for self-adhesive fiberglass drywall mesh was established.

Compound controls: water, mix, working time, fill depth, coat thickness, set, dry, recoat, sanding, environmental, primer, and finish instructions remain with the exact product and assembly.

Hazard boundary: pre-1978 paint and suspect legacy texture, joint compound, patching compound, or plaster require the applicable assessment and exposure-control route before disturbance; this guide does not infer content by age alone.

Mockup limit: the mockup proves only observable product/workflow compatibility and finish behavior under its conditions. It does not prove long-term strength, rating, code compliance, smoke/acoustic performance, or universal equivalence.

Product graph status — keep the empty union empty

This is a system-selection guide upstream of a product choice, and its empty graph state is part of the canonical record.

These are earned contextual backlinks only. No Hyde paper-tape SKU is invented. Price, availability, coverage, and unverified assembly compatibility are intentionally absent.
