How to Choose a 9-Inch Roller Frame — Qualify the Four Documented Hyde Options

Job: select and qualify one of the four documented Hyde 9-inch roller-frame offers without inventing compatibility or performance.

Time: one careful evidence review and dry qualification before purchase or use.

Difficulty: the tools are simple; the evidence discipline is not. Width alone does not establish cover fit, “Acme” on the frame side does not prove an exact pole pair, and a product name is not a load rating.

The exact product leads from this catalog:

Hyde documents a patented flexible arm, walk-off-free design, even pressure across the roller, clean-hands cover removal, a bucket hook on a poly-pro handle, and an Acme thread for pole attachment.

The catalog says its metal ring reduces walk-off; the product description says it eliminates walk-off.

Everything else: the exact cover intended for the job, with its current fit and application documentation · the exact extension pole if pole use matters · the coating label, technical data sheet, and safety data sheet for the actual material · the surface and finish requirements · a clean, dry example of every component to be paired · good light · a protected representative test area if a loaded proof is required · a written record of what passed, failed, or remains unknown.

No universal cover core, cover roster, pole pairing, bearing construction, retention force, coating assignment, load limit, production rate, finish advantage, or service life is established for all four frames. None is inferred below.

The short answer: choose by the documented requirement

Use this as a routing table, not as permission to skip qualification.

| Requirement you can actually name | Evidence-backed lead | What still must be proved |

If the requirement is “best,” “for thick paint,” “for epoxy,” “for rough masonry,” “for all-day production,” or “strong enough for my pole,” the record does not yet contain a defensible selection rule. Translate the vague request into a documented feature or obtain a manufacturer specification for the actual load and material. Do not turn product names and construction words into performance ratings.

Write the job requirements before looking at the shelf

A selection made from the product names alone will drift toward invented hierarchy. Start with the actual system.

Name the work surface and finish requirement. Record the surface, condition, finish standard, and restricted access.

If the coating maker calls for a particular roller-cover construction, record that requirement exactly.

Identify the cover. Record manufacturer, exact model, nominal width, mounting or core specification, nap or surface, and documented frame compatibility. “Nine inch” proves nominal working width, not the interface that mounts the cover.

Decide whether a cover must be included. Of the four registered products, only 47412 is officially named as a frame supplied with a Woven Ultra™ 3/8-inch cover. That bundle is an identity fact, not proof that its cover suits every job.

Decide whether pole use is required. All four records include an Acme-thread claim on the frame side. Record the exact pole and its tip specification separately. If the pole side is undocumented, the connection remains unqualified.

Name the frame feature that matters. Examples supported by this union include standard versus soft-grip handle, the five-wire “reduces walk-off” claim, the Flexi feature set, a retaining ring, a bucket hook, or the heavy-duty construction described for 47413.

Name any required rating. If the site or process requires a load, chemical-resistance, duty-cycle, pole-length, or other numeric rating, put it on the sheet. None of those ratings appears in the accepted four-product record. A missing required rating is a stop, not an invitation to estimate.

Separate the one near-duplicate pair before comparing the architectures

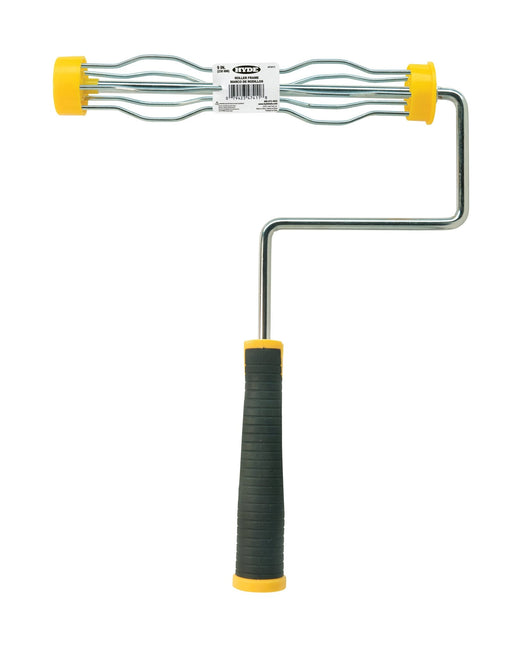

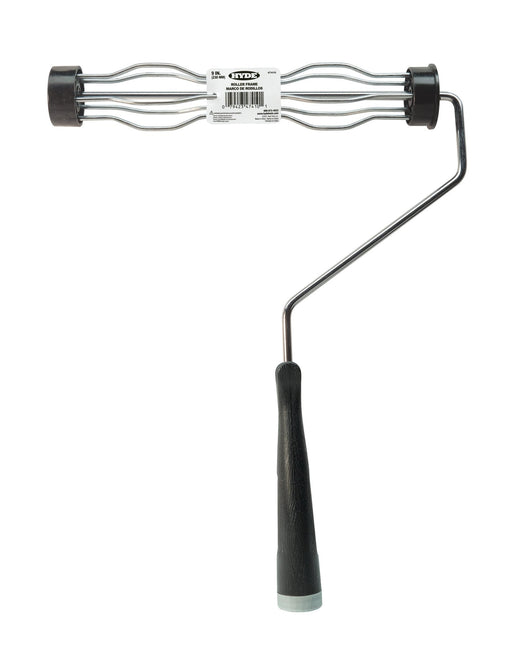

The 47410 and 47411 share an official family page and the same accepted cage claim. The documented selection difference is the handle:

47410: standard handle, with the catalog specifying plastic.

47411: soft-grip handle, with the catalog specifying overmolded plastic “for comfort during use.”

That is the complete accepted distinction. Do not claim that 47411 has a different wire gauge, stronger cage, different retention, longer service life, better wet grip, or better finish.

Choose between the pair by handling the clean, dry tools if possible. Confirm that the grip shape, diameter, texture, and balance work for the intended operator and any required gloves. That is an ergonomic trial of the actual units, not a universal performance claim. If both are comfortable and no soft-grip requirement exists, the evidence supplies no second product distinction with which to break the tie.

Read the two feature-rich options at exact claim strength

3.1 Qualifying the 47412 Flexi-Frame

The accepted 47412 record supports these exact selection facts:

it is a 9-inch Flexi-Frame offered with a Woven Ultra™ 3/8-inch nap roller cover;

Hyde calls the flexible arm patented and walk-off-free;

Hyde claims even pressure across the entire roller;

Hyde claims no-mess or clean-hands cover removal;

Hyde documents a bucket hook on a poly-pro handle;

Hyde documents an Acme thread for pole attachment.

These claims make 47412 the evidence-backed lead when the buyer explicitly needs that combined feature set or the named bundled cover. They do not prove a compatible replacement-cover roster, numeric core diameter, internal bearing design, a particular removal motion, a particular pole pairing, a coating family, or a finish result.

If the bundled cover is intended for use, qualify it against the exact coating and surface documents. If another cover is intended, require an exact compatibility statement or prove the physical pair under the component instructions. Do not generalize from the bundle to “all 9-inch covers.”

3.2 Qualifying the 47413 heavy-duty ring frame

The accepted 47413 record supports:

the exact official identity “9-inch heavy-duty roller cage frame with metal retaining ring”;

a catalog family description of thick durable wire and an ergonomic plastic handle;

an exact product description naming a thick-gauge stainless-steel bar and lightweight plastic cage;

a metal retaining ring associated with walk-off and used-cover knock-off;

a bucket hook on a poly-pro handle;

an Acme thread for pole attachment.

It does not supply a load rating, pole-length limit, coating-viscosity range, chemical-resistance statement, cover roster, ring engagement diagram, retention force, removal procedure, or quantified durability comparison.

The walk-off wording must remain visible: the catalog says the ring reduces walk-off, while the exact online description says it eliminates walk-off. A selector may choose 47413 because a metal retaining ring and the documented construction are required. A selector may not convert the conflicting words into an absolute guarantee. If complete prevention is a contract requirement, obtain written clarification for the exact model or run the authorized acceptance test defined by the responsible party.

Qualify the exact cover-to-frame pair while dry

The 47412 record identifies its bundled cover, but does not establish every replacement cover.

For each candidate:

Do not use the anomalous title fractions as fit specifications.

Inspect the frame. Under good light, reject visible bends, cracked plastic, loose or missing parts, dried material at the mounting surfaces, damaged handle features, damaged thread, or anything that prevents the tool from matching its documented configuration.

Inspect the cover. Confirm its exact identity, mounting interface, condition, and documented frame requirement. Reject a crushed, distorted, contaminated, or unidentified cover.

Mount only by the applicable instructions. Keep the cover square to the frame. Do not hammer, pry, bend, tape, shim, or force an unwilling pair.

Turn the cover by hand. It must move consistently without scraping, binding, orbiting, or visible displacement. This is a functional observation; it does not identify or imply a bearing design.

Cycle the dry assembly. Hold it in the intended working orientations, make slow mock passes, reverse direction, and inspect the cover position. A dry pass does not prove loaded performance, but a dry failure rejects the pair immediately.

Do not improvise a bucket-rim technique or force a mechanism based on a claim name.

Record the outcome. Mark the exact pair PASS, FAIL, or UNKNOWN. PASS means this clean physical pair completed the bounded dry test. It does not become a universal compatibility claim.

If fit cannot be established without modifying a component, the candidate is not qualified. Select a documented pair or obtain exact manufacturer guidance.

Qualify pole use as a two-sided connection

“Acme thread included” describes the frame side. A connection has two sides.

Record the exact frame model and exact pole model.

Find the pole maker’s current thread or adapter specification. A generic “paint pole” label is not enough.

Inspect both clean, dry thread surfaces. Reject damage, contamination, partial threads, or an adapter of unknown identity.

Start the joint by hand, square to the axis. Do not use pliers, tape, shims, thread compounds, or cross-threading force.

Engage the joint through the complete physical or instructed travel. Reject binding, rocking, a joint that stops on only a partial thread, or one that cannot be separated normally.

With no coating loaded, cycle the assembly at the shortest intended pole setting. Watch the joint and pole lock through starts, stops, and changes of direction.

If the pole will be extended, qualify every intended setting under the pole’s own instructions.

Mark the exact pair PASS, FAIL, or UNKNOWN.

A dry physical pass is a bounded equipment check, not a manufacturer compatibility statement. Where documented compatibility is required, a physical pass alone is insufficient. No guide sentence should promise that any of these four frames fits “any standard pole.”

Run one controlled working proof before admitting the setup

The dry tests eliminate obvious mismatches. They do not prove what the cover, coating, and frame will do together under the real material.

Prepare a representative test area under the coating and site instructions. Use the specified cover, preparation, loading, environmental controls, and protective measures. The test must be small enough to stop without sacrificing the full surface and representative enough to reveal the actual system.

Mount and, if applicable, pole-connect the exact components that passed dry.

Load only as the coating and cover instructions permit.

Apply one bounded section using the coating’s required method.

Observe cover seating, rotation, frame alignment, handle control, pole-joint stability, and any claimed feature that the job actually depends on.

Stop immediately if the cover migrates, the frame deforms, a ring or arm changes position, the joint loosens, the cover binds or skids, or the operator loses control.

A finish defect may belong to the cover, coating, preparation, loading, environment, or technique; do not automatically assign it to the frame.

Admit the exact setup only if it meets the prewritten job requirements. Record the frame, cover, pole, coating, surface, conditions, and result.

It proves one observed setup for one job.

Final decision paths

Choose 47410 when

The requirement is specifically a 9-inch five-wire cage frame with the documented standard plastic handle and Acme frame-side thread, and the exact cover and any pole connection pass qualification. Its official walk-off claim is reduces, not eliminates.

Choose 47411 when

The 47410 feature set is acceptable but the operator specifically selects the documented overmolded soft-grip handle for comfort.

Choose 47412 when

The buyer needs the documented Flexi feature set, clean-hands removal claim, bucket hook, or a frame supplied with the named Woven Ultra™ 3/8-inch cover. The chosen cover still must suit the job, replacement covers remain unrostered, and any exact pole pairing remains separately qualified.

Choose 47413 when

The requirement specifically calls for the documented heavy-duty identity and construction, metal retaining ring, knock-off feature, or bucket hook. Do not turn those features into an unprinted load, coating, durability, or absolute retention rating. Carry the “reduces” versus “eliminates” conflict into the decision if walk-off performance is critical.

Reject all four for now when

the required cover fit is undocumented and cannot be qualified;

the exact pole connection is not documented or fails the physical check;

the job requires a numeric load, reach, retention, chemical, or duty rating absent from the record;

a damaged or incomplete unit cannot reproduce the documented configuration;

the deciding claim rests on the unexplained title fractions, assumed bearing design, presumed handle behavior, an invented cover class, or a coating-performance story.

“No qualified selection yet” is a complete and professional result. It names the missing evidence the supplier or manufacturer must resolve.

What goes wrong — and the bounded fix

“They are all nine inch, so my cover must fit.” Nominal width is not the mounting interface. Return to the cover documentation and dry-pair qualification. Do not force the cover.

The 47410 and 47411 are being sold as different cage grades. Stop the comparison. The accepted distinction is the handle.

The title fractions are driving the choice. Their meaning is undefined.

The cover seats but binds or moves irregularly. Stop. Inspect identity, cleanliness, damage, and the instructed mount. Reject the pair if normal mounting does not correct it; do not diagnose an undocumented bearing.

The cover migrates during the proof. Stop before it leaves the controlled area. Recheck seating, component condition, instructions, and the exact requirement.

The 47413 ring claim is quoted as an absolute. Restore both official wordings: “reduces” in the catalog, “eliminate” in the exact description. Seek clarification if the distinction controls acceptance.

A hands-free removal method is being improvised. The feature is documented for 47412 and 47413, but the procedure is not. Use current manufacturer instructions or physical-product guidance; do not invent leverage points.

The frame threads partway onto a pole. Partial engagement is failure, not “close enough.” Separate, inspect, and qualify the exact pair. Never wrench, tape, or shim it together.

A thick coating is used to justify 47413 automatically. The product is named heavy-duty and its construction is documented, but no coating-viscosity range or load rating is supplied.

The 47412 bundle is assumed to solve every wall job. The bundle proves what is included, not where the cover is suitable. Qualify the 3/8-inch Woven Ultra™ cover against the coating and surface.

A finish defect is blamed on the frame without diagnosis. Isolate preparation, coating, cover, loading, environment, frame behavior, and technique. Frame selection is only one branch.

The operator wants a simple “best” answer. Ask which documented requirement matters. If none can be named, no evidence-backed ranking exists.

Which one is the basic frame?

47410 is the documented standard-handle variant of the five-wire cage offer. “Basic” does not waive cover and pole qualification.

What is the proven difference between 47410 and 47411?

The handle: standard plastic on 47410, overmolded soft grip on 47411.

Do the 1/4-inch and 5/16-inch title fractions describe the frame rod?

No accepted official source defines them.

Which frame guarantees that a cover will not walk off?

Hyde says the 47410/47411 five-wire design reduces walk-off; Hyde describes 47412 as walk-off-free and says its patented design eliminates walk-off; 47413 carries conflicting official “reduces” and “eliminate” wording. Exact component condition and working qualification still matter.

Does 47413 have a stronger load rating?

Its heavy-duty identity, thick durable wire, stainless-steel bar, plastic cage, and retaining-ring features are documented; a specific load capability is not.

Is 47412 the only one supplied with a cover?

Will any 9-inch cover fit all four?

That claim is unsupported. The accepted records do not provide a universal compatible-cover roster or numeric core specification across the four.

Do all four fit an extension pole?

All four document an Acme frame-side thread for pole use or attachment. That does not prove an exact pole pair. Qualify the pole side separately.

Which one is for a particular coating?

The accepted records do not map these frames to latex, epoxy, high-build, elastomeric, or any other coating class. The coating documentation selects the applicator requirements; the exact frame system must then qualify.

Does 47412 use bearings?

How does the 47413 ring admit and release a cover?

Can I select from the online description without testing?

Only if the job requires no unprinted compatibility or performance fact. In normal use, the cover pair—and any pole pair—still needs documented or physical qualification.

47410/47411 title fractions: 1/4 inch versus 5/16 inch remains undefined; do not treat either as rod, wire, axle, handle, or cover dimension.

47410 title wording: “5-hill wire” is inconsistent with the official five-wire identity and remains a catalog-retitle issue.

Cover fit: no exact compatible-cover roster or numeric core specification is accepted across 47410, 47411, and 47413.

47412 replacement covers: the bundled Woven Ultra™ 3/8-inch cover is identified; a universal replacement-cover roster is not.

47412 bundled-cover identity: the offer names the cover family and nap, but no separate bundled cover model key is established here.

47413 retention wording: catalog “reduces” and exact-description “eliminate” conflict; preserve both until resolved.

Ring and arm mechanics: engagement, release sequence, retention force, wear limit, and service inspection criteria are unprinted.

Bearing construction: no bearing type, material, sealing, lubrication, or life claim is accepted for any candidate.

Handle specifics: no handle dimensions, overmold composition or durometer, solvent resistance, wet-grip rating, or comparative fatigue result is accepted.

Pole compatibility: frame-side Acme claims do not establish any exact pole pair, engagement length, adapter, load, or reach rating.

Coating and performance: no accepted viscosity range, coating roster, substrate roster, load rating, finish ranking, production rate, or service-life comparison selects among the four.
